Fig. 1: Study sites in the Amazon Basin.

From: Wildfire legacies on pyrogenic carbon stocks in Amazonian peatlands

Fig. 1: Study sites in the Amazon Basin.

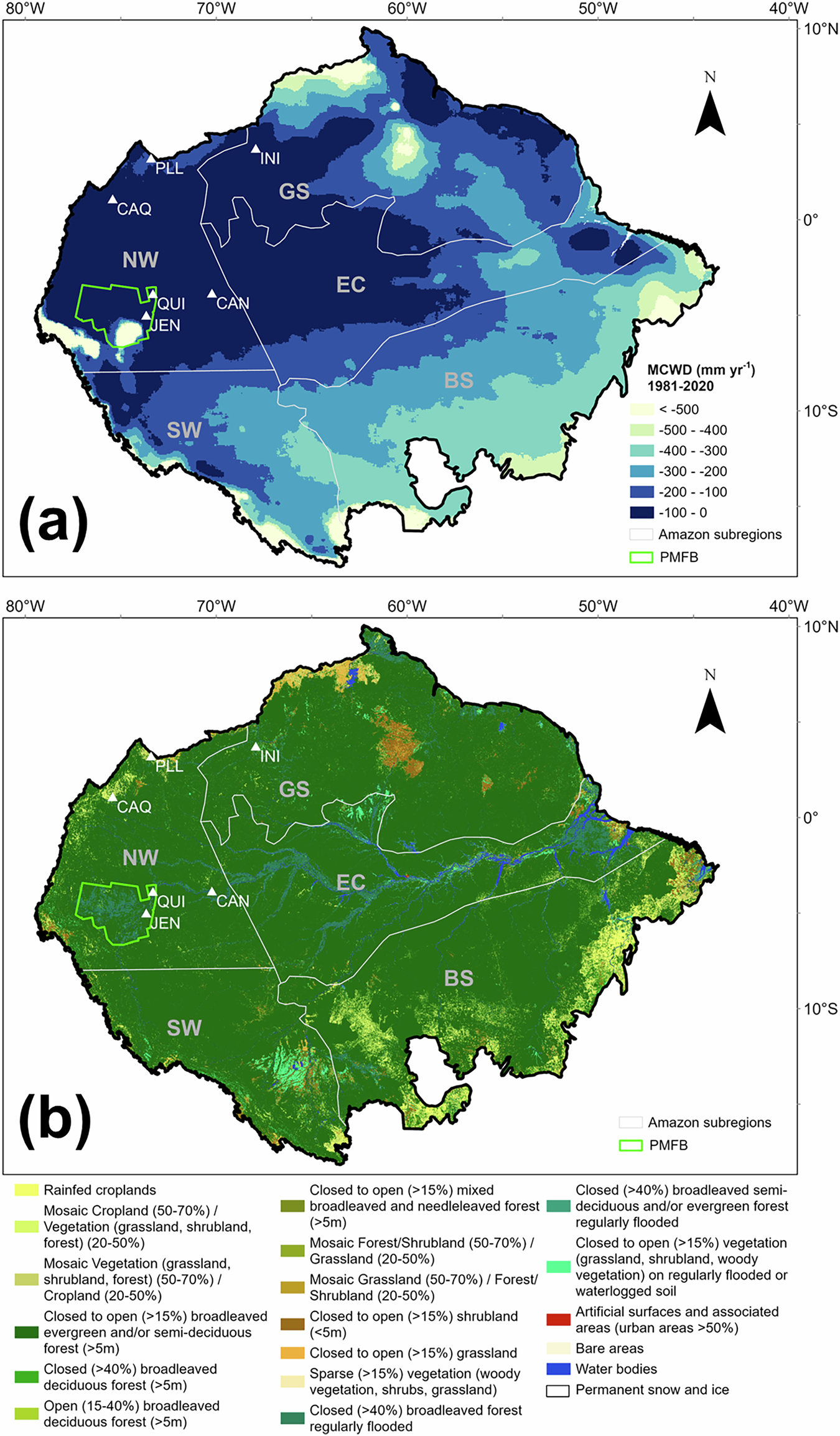

a Locations of study sites (white triangles) on the map of averaged Maximum Cumulative Water Deficit (MCWD) from 1981 to 202083 and b on the land cover map84. White lines indicate regional boundaries85,86. NW Northwestern Amazonia, SW Southwestern Amazonia, GS Guiana Shield, EC Eastern & Central Amazonia, BS Brazilian Shield. Green lines refer to the Pastaza-Marañón Foreland Basin (PMFB)87.
