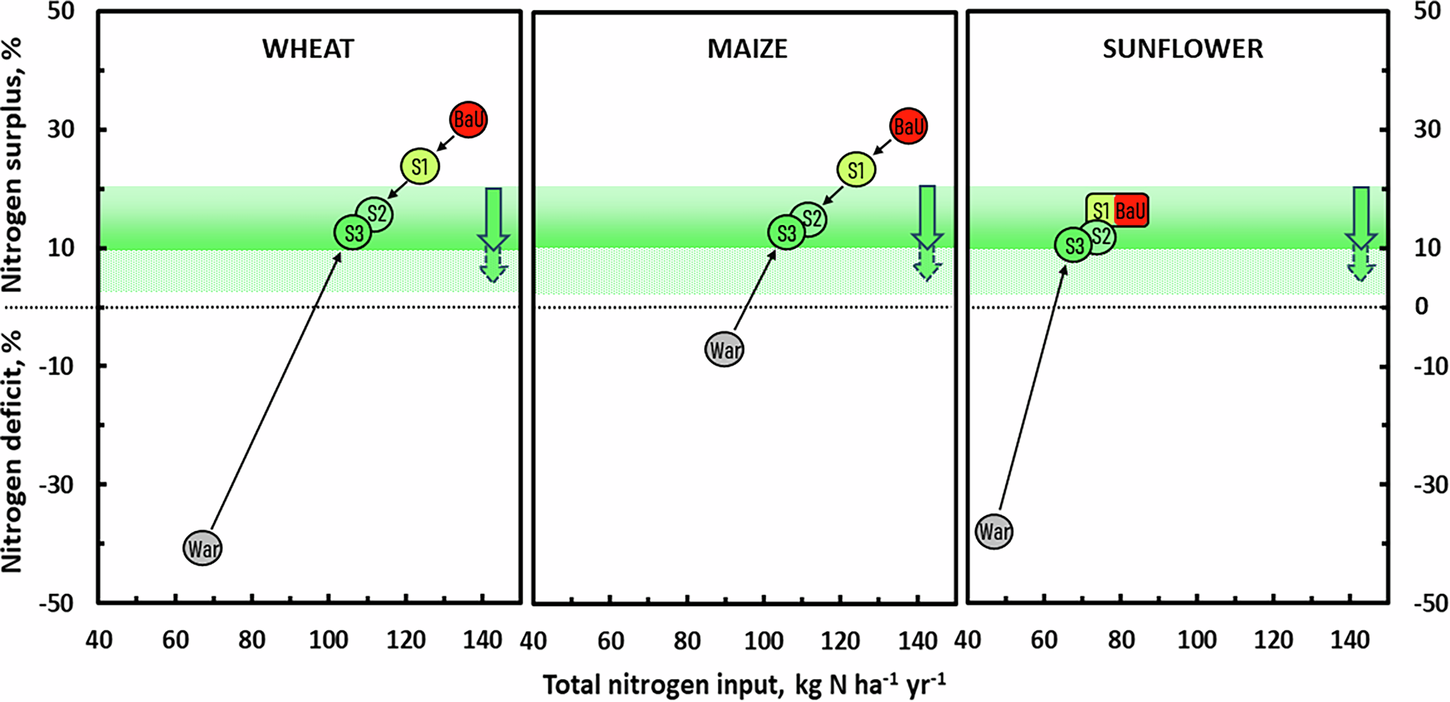

Fig. 6: Average nitrogen (N) surplus or deficit as a percentage of total N input for wheat, maize, and sunflower in Ukraine under five contrasting scenarios for 2030.

The business-as-usual scenario (BaU; S-0) reflects the continuation of 2021 agricultural practices prior to the Russian invasion. The extended war disruption scenario (War; S-w) assumes prolonged fertilizer shortages at 2023 levels. The manure-enriched precision fertilizer scenario (S1; S-1) involves the substitution of synthetic N with manure-N, increasing its share by 30%, combined with precision fertilizer application. The enhanced efficiency fertilizer scenario (S2; S-2) builds upon S1 by incorporating nitrification inhibitors and slow-release fertilizers. The legume-based diversification scenario (S3; S-3) introduces optimized crop rotations with legumes, in combination with S2 or S1 (see Nutrient Management Scenarios). Scenario colours indicate relative N emission reductions: red (BaU) denotes no reduction, a green gradient from S1 to S3 reflects stepwise reductions, and grey indicates the situation under the War (see Table 1; Supplementary Note 2.8). The green-shaded belt represents the acceptable N surplus range, between 10% and 20% of total N input³⁸. The green-dotted belt indicates further reductions from 10% toward the minimally unavoidable N loss, expected to decline over time with improved agricultural practices. Arrows indicate the direction of surplus reduction. The dotted horizontal line marks zero N balance (equilibrium) with surpluses above and deficits below this threshold.
