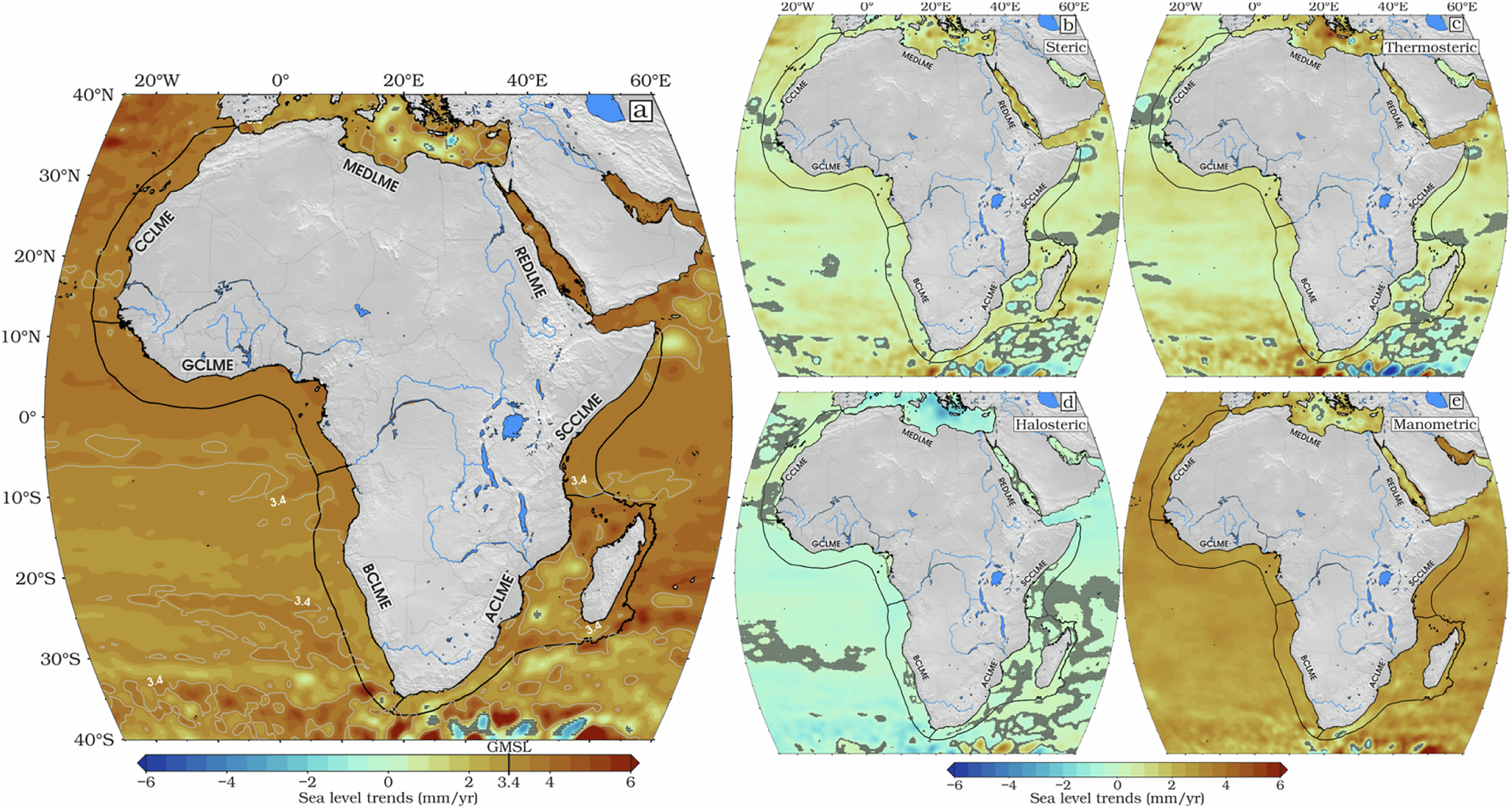

Fig. 4: Spatial distribution of regional sea-level trends across Africa’s coastal LMEs from 1993 to 2023.

From: Accelerating sea level rise in Africa and its large marine ecosystems since the 1990s

Fig. 4: Spatial distribution of regional sea-level trends across Africa’s coastal LMEs from 1993 to 2023.The alternative text for this image may have been generated using AI.

a Total sea-level trend; b total steric; c thermosteric; d halosteric; and e manometric (SLA minus steric) trends. GIA corrections were applied to both SLA and manometric trends. At each grid point, mean and seasonal cycles were removed prior to trend estimation. All trends are statistically significant at the 95% confidence level except in areas marked with gray dots. The seven African LMEs are labeled as in Fig. 1.
