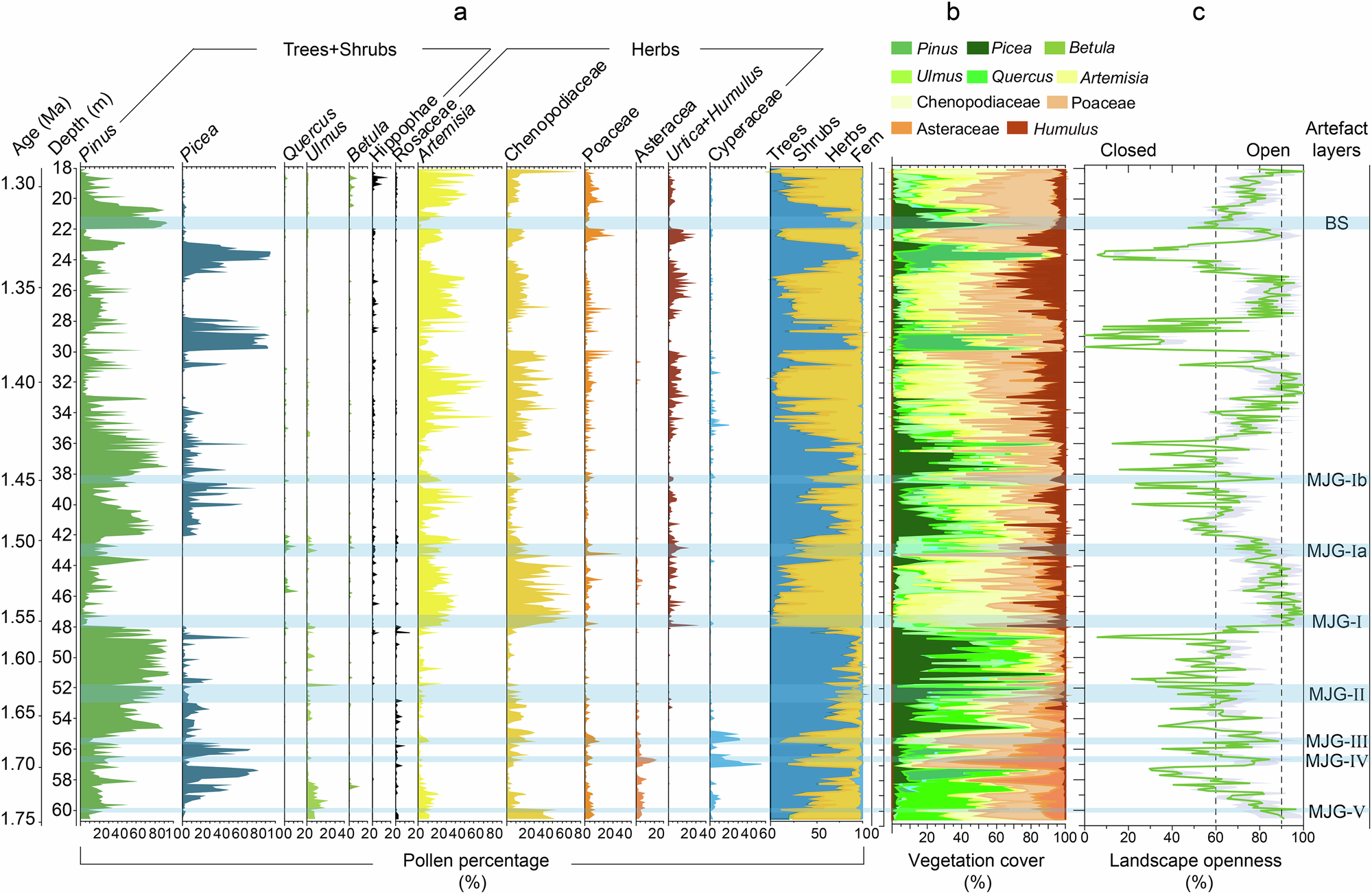

Fig. 4: Changes in vegetation cover and landscape openness during the early Pleistocene at the MJG site.

a Percentages of the principal pollen types. b Vegetation cover reconstructed based on the REVEALS model. c The openness of the vegetation landscape was quantitatively reconstructed based on the transfer function method (Supplementary Note 4, Supplementary data 3).
