From: Ecological shift in a remote alpine lake in inland Asia induced by European air pollutants

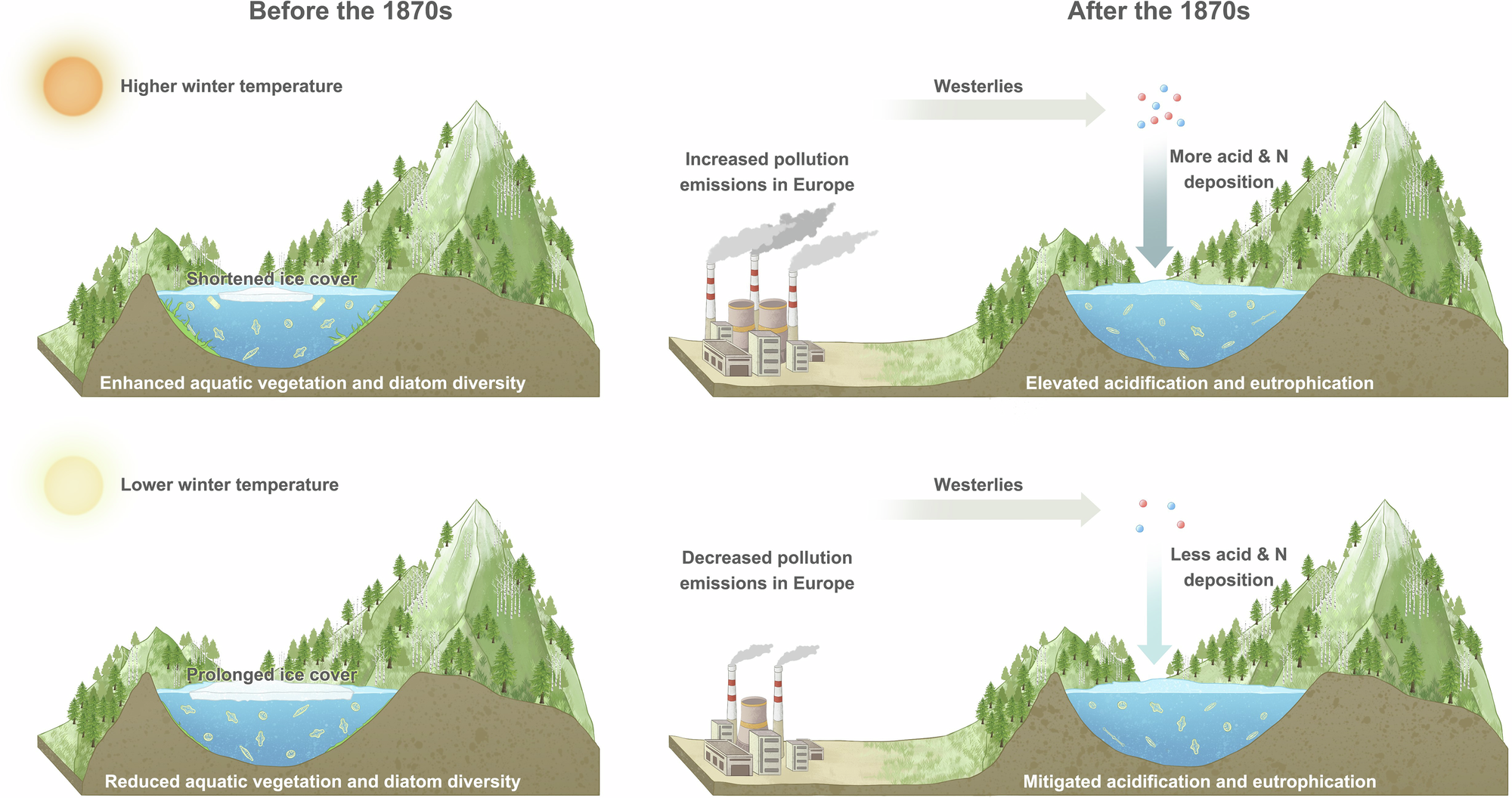

Schematic diagram depicting the regime shift from climate-driven to human-driven ecology in Shuanghu Lake since the 1870s.
