Fig. 6: Numerical simulations of the two PDCs.

From: Unraveling pyroclastic density current dynamics with multiparameter geophysical sensing

Fig. 6: Numerical simulations of the two PDCs.

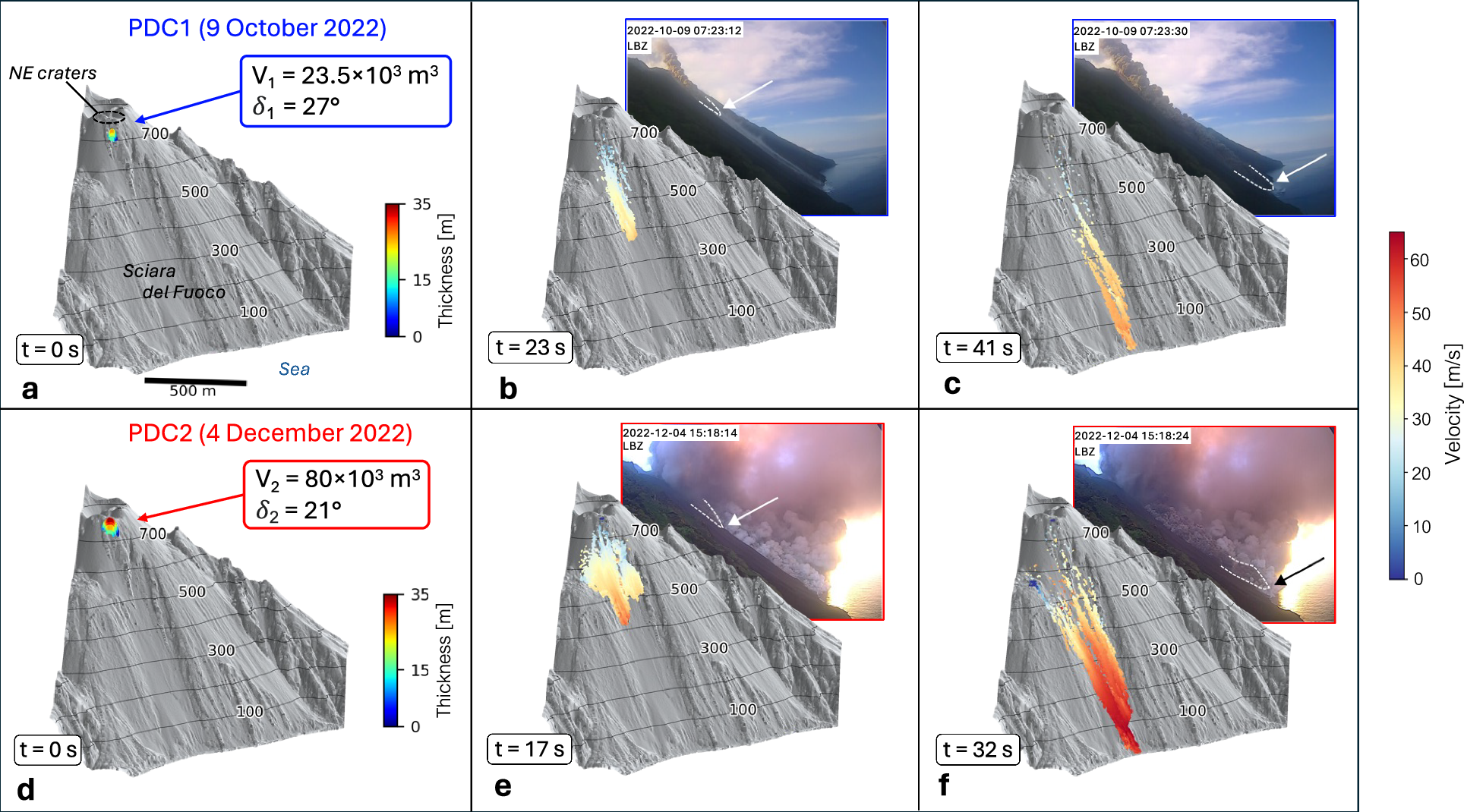

Snapshots of the simulations that best match the observed front velocities of PDC1 (ac) and PDC2 (df). We consider friction angles δ1 = 27° and δ2 = 21°, respectively. a, d show the initial location of the flow mass with colours representing its thickness. b, c, e, f show the propagation of PDC1 and PDC2 at different time intervals, compared with real observations. The colours in (a, b) and (e, f) indicate the flow velocity.
