Extended Data Fig. 1: Overlay of structural models by DEMO-EM on the cryo-EM density maps for the six proteins in SARS-CoV-2 genome.

From: Progressive assembly of multi-domain protein structures from cryo-EM density maps

Extended Data Fig. 1

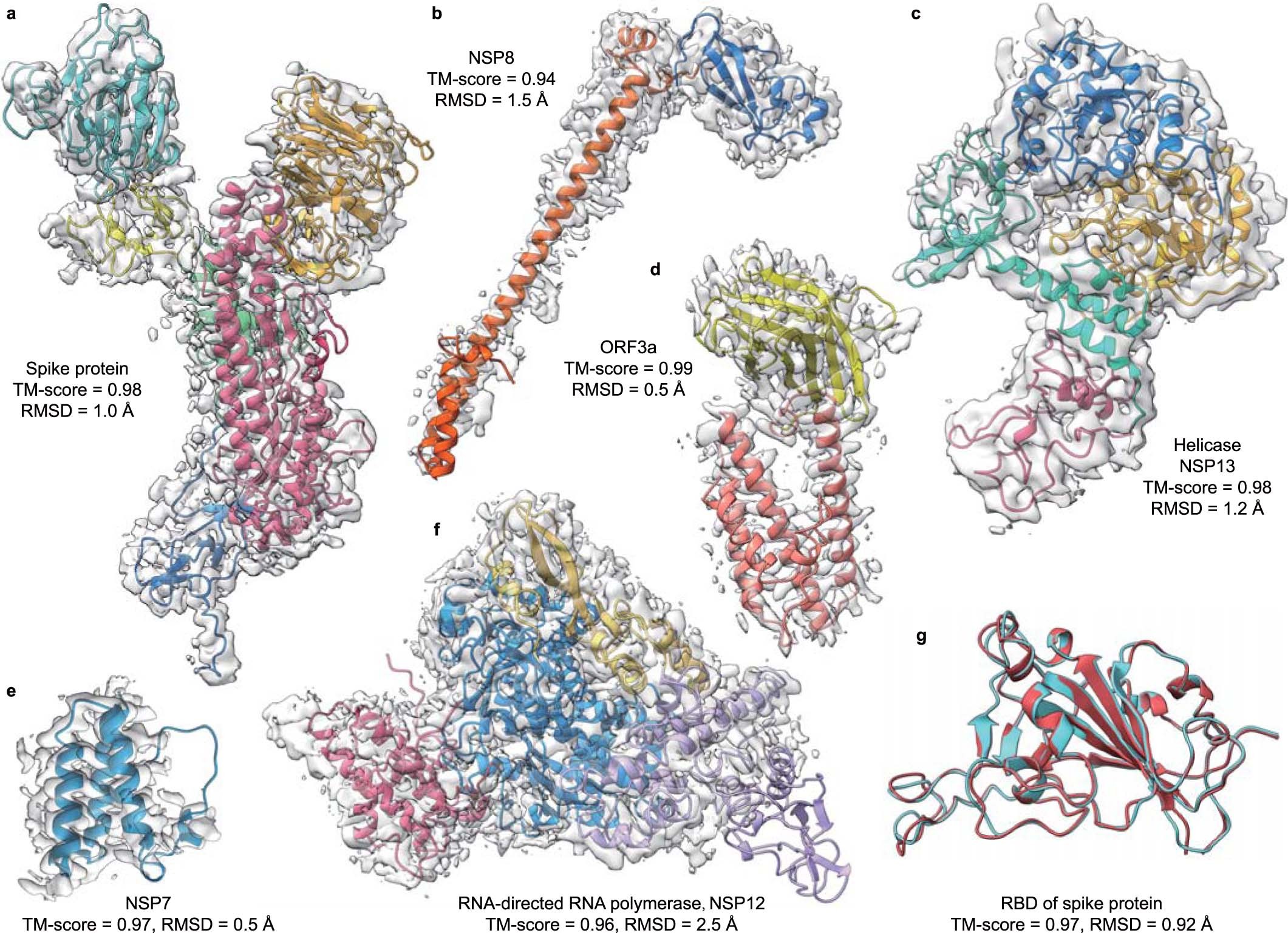

(a) Spike protein (density map from EMD-21375). (b) NSP8 (EMD-11007). (c) Helicase/NSP13 (EMD-22160). (d) ORF3a (EMD-22136). (e) NSP7 (EMD-11007). (f) RNA-directed RNA polymerase/NSP12 (EMD-11007). (g) Comparison of the Spike RBD domain by DEMO-EM (cyan) with the X-ray structure (red, PDB 7bz5A).
