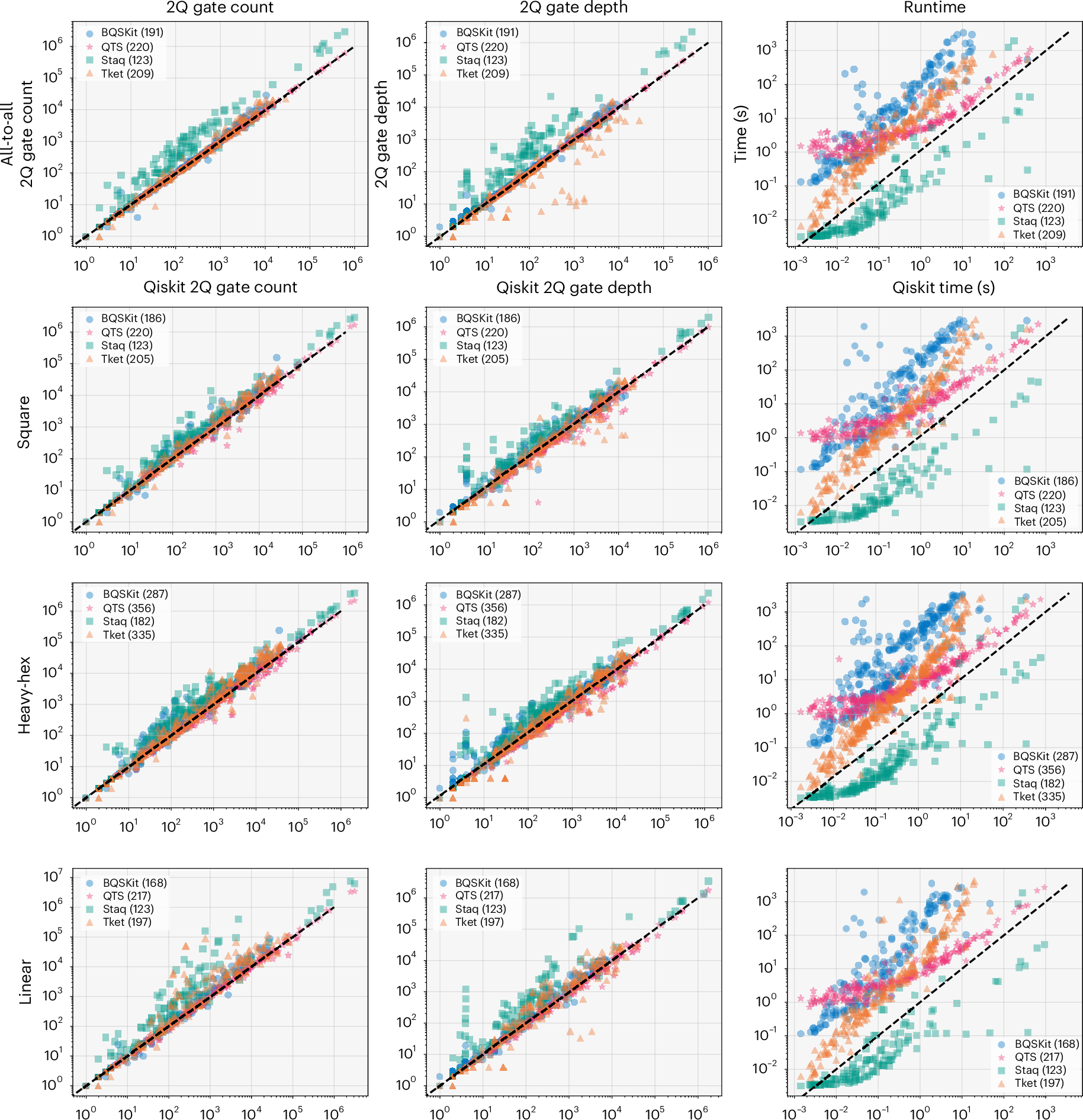

Fig. 3: Results generated from the device and abstract transpilation tests in Benchpress.
The rows indicate the topology used in the tests, whereas the columns label the reported metric. For brevity, only the top row of plots is labeled. The target topology for the device transpilation tests is ‘heavy-hex’, using a snapshot of the IBM Torino device as the target processor. Markers above the dashed line indicate tests where Qiskit performs better on a given metric relative to the specified SDK. By contrast, markers below highlight SDK performance that is better than that of Qiskit. The total number of passed tests in each dataset is given in the legends.
