Extended Data Fig. 6: Images of our integrated memristor chip.
From: Real-time raw signal genomic analysis using fully integrated memristor hardware

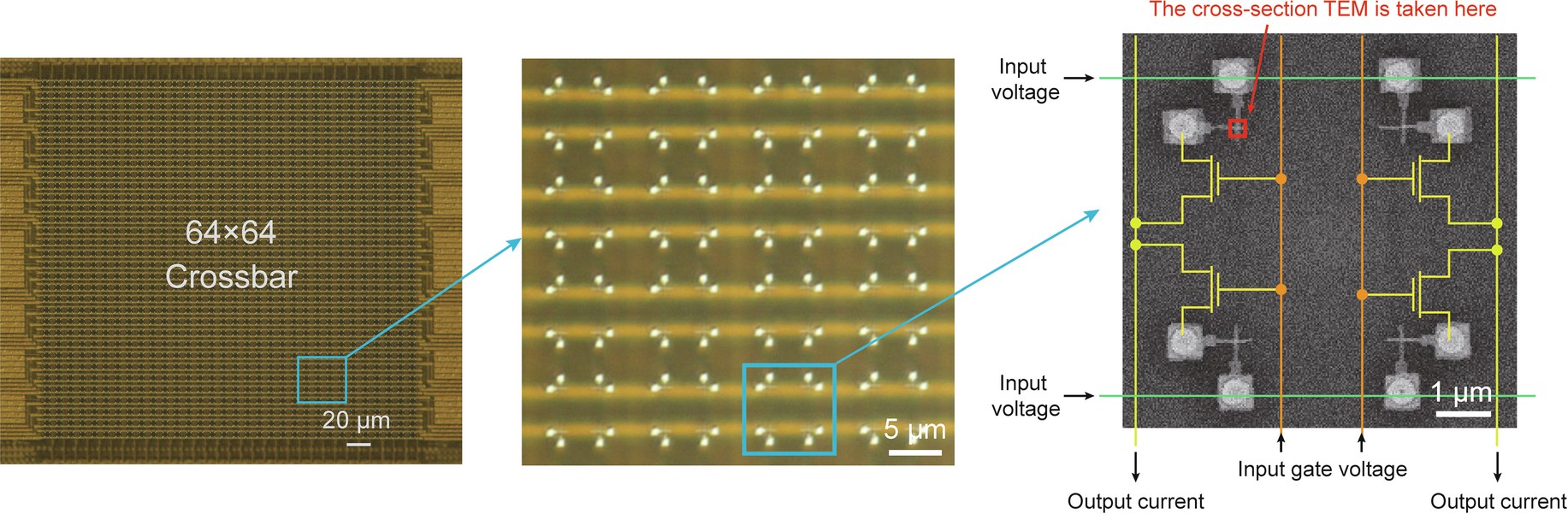

Optical top-view of our crossbar array and a top-view scanning electron microscopy (SEM) image showing four tantalum oxide memristors within the array.
