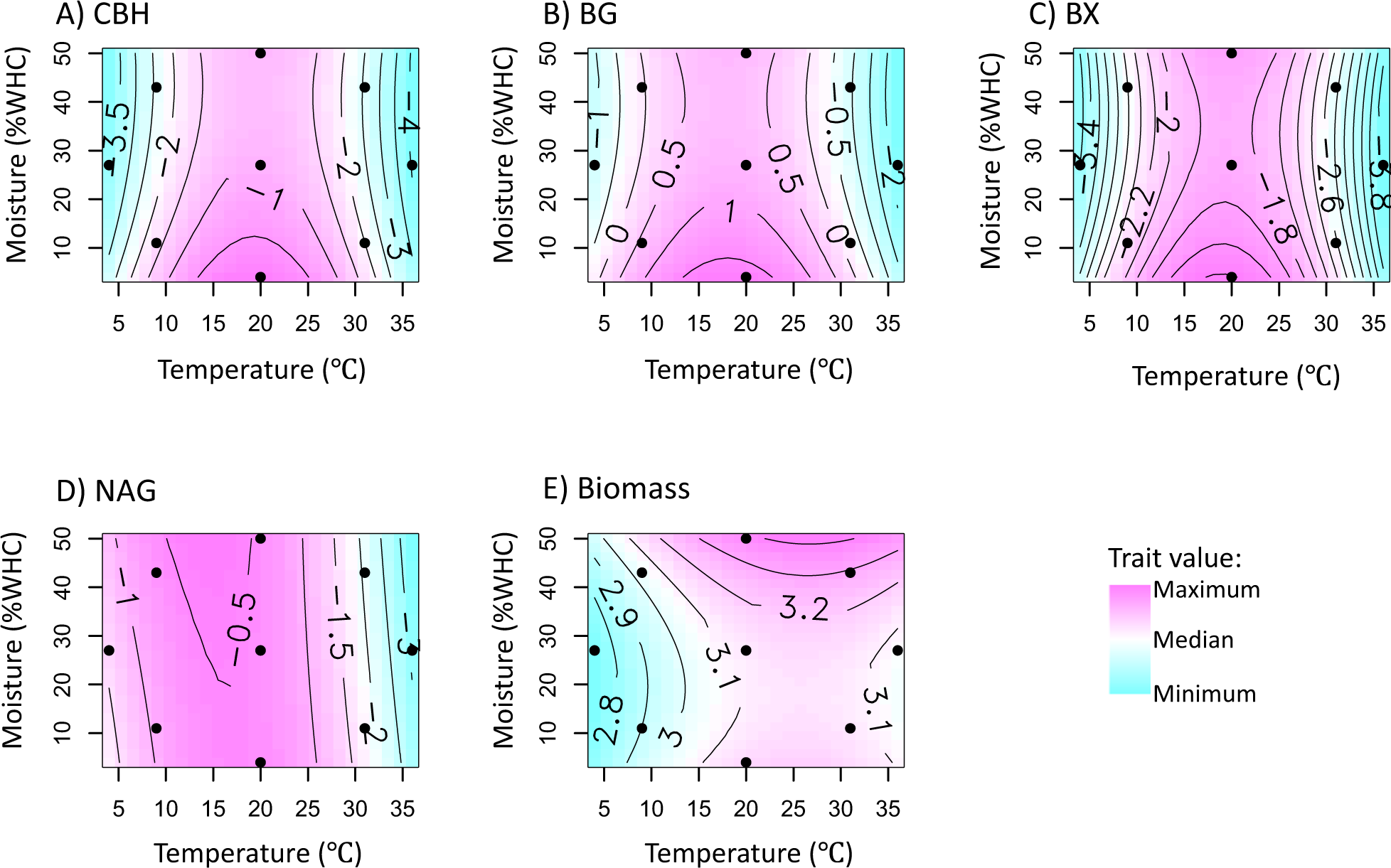

Fig. 2: Response surface plots.
From: Phenotypic plasticity of fungal traits in response to moisture and temperature
Contour plots of log-transformed data for the average activities of all of the isolates for (A) cellobiohydrolase (CBH), (B) β-glucosidase (BG), (C) β-xylosidase (BX), and (D) N-acetyl-β-D-glucosaminidase (NAG), and (E) fungal biomass across the moisture-temperature gradient (n = 18 for each response surface). Each response surface is on a separate scale, as indicated by the numbers on the lines on each contour plot. All maximum values are pink, and all minimum values are blue. The small black circles indicate incubation conditions. Response surfaces for each fungal isolate individually can be found in Figures S2–S6.
