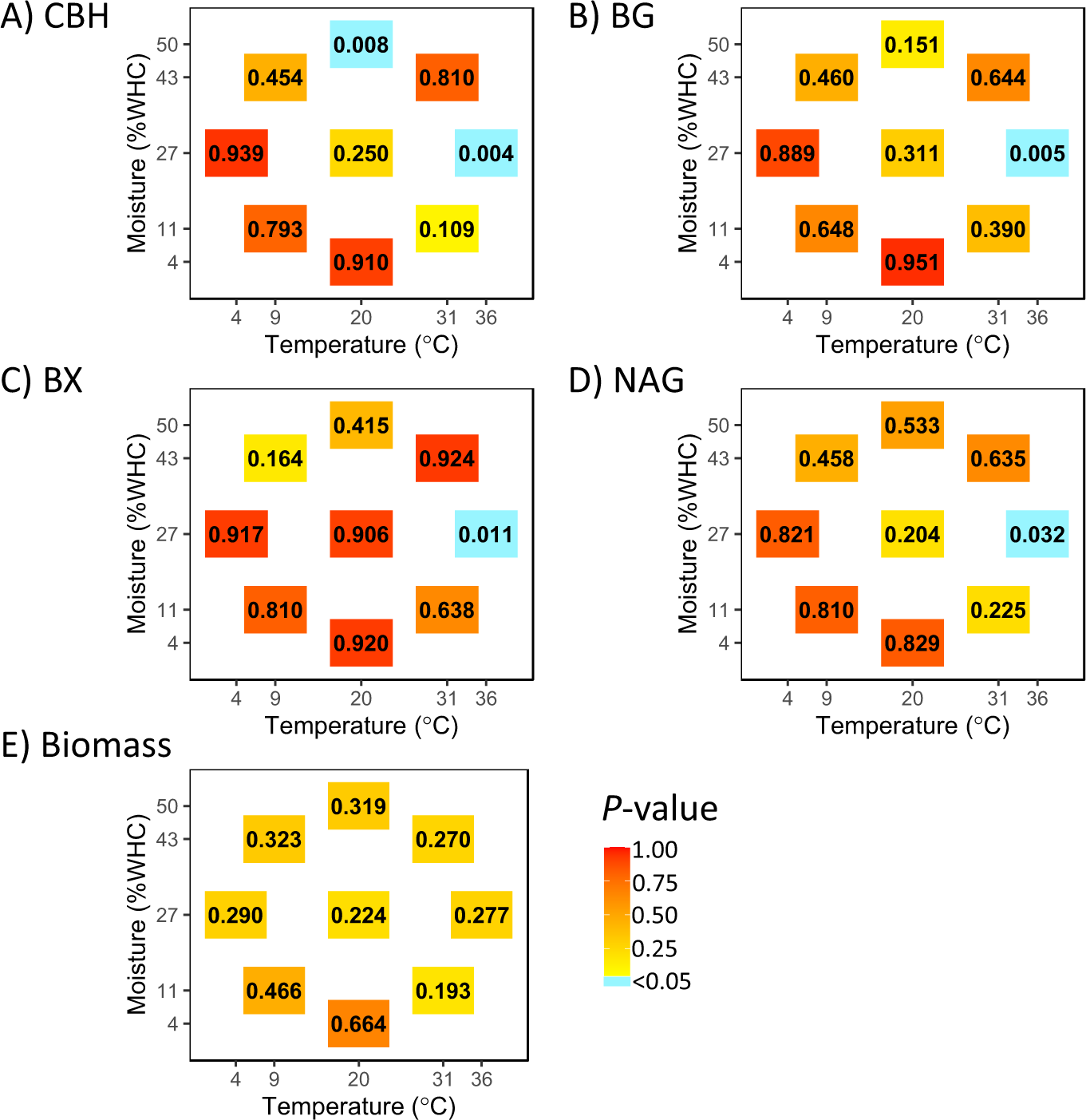

Fig. 3: Heat map representing the strength of the phylogenetic signal.
From: Phenotypic plasticity of fungal traits in response to moisture and temperature
(A) cellobiohydrolase (CBH), (B) β-glucosidase (BG), (C) β-xylosidase (BX), and (D) N-acetyl-β-D-glucosaminidase (NAG), and (E) fungal biomass across the moisture-temperature gradient (n = 12 for each P-value). The color gradient signifies the P-value (unadjusted) associated with Blomberg’s K test at each specific point on the moisture-temperature gradient, with blue values indicating a significant phylogenetic signal (P < 0.05). The numbers in each colored box represent the P-value at that specific moisture × temperature combination.
