Fig. 5: Ice nucleation activity of biological and non-biological particles in smoke and ambient air.

From: Wildland fire smoke alters the composition, diversity, and potential atmospheric function of microbial life in the aerobiome

Fig. 5

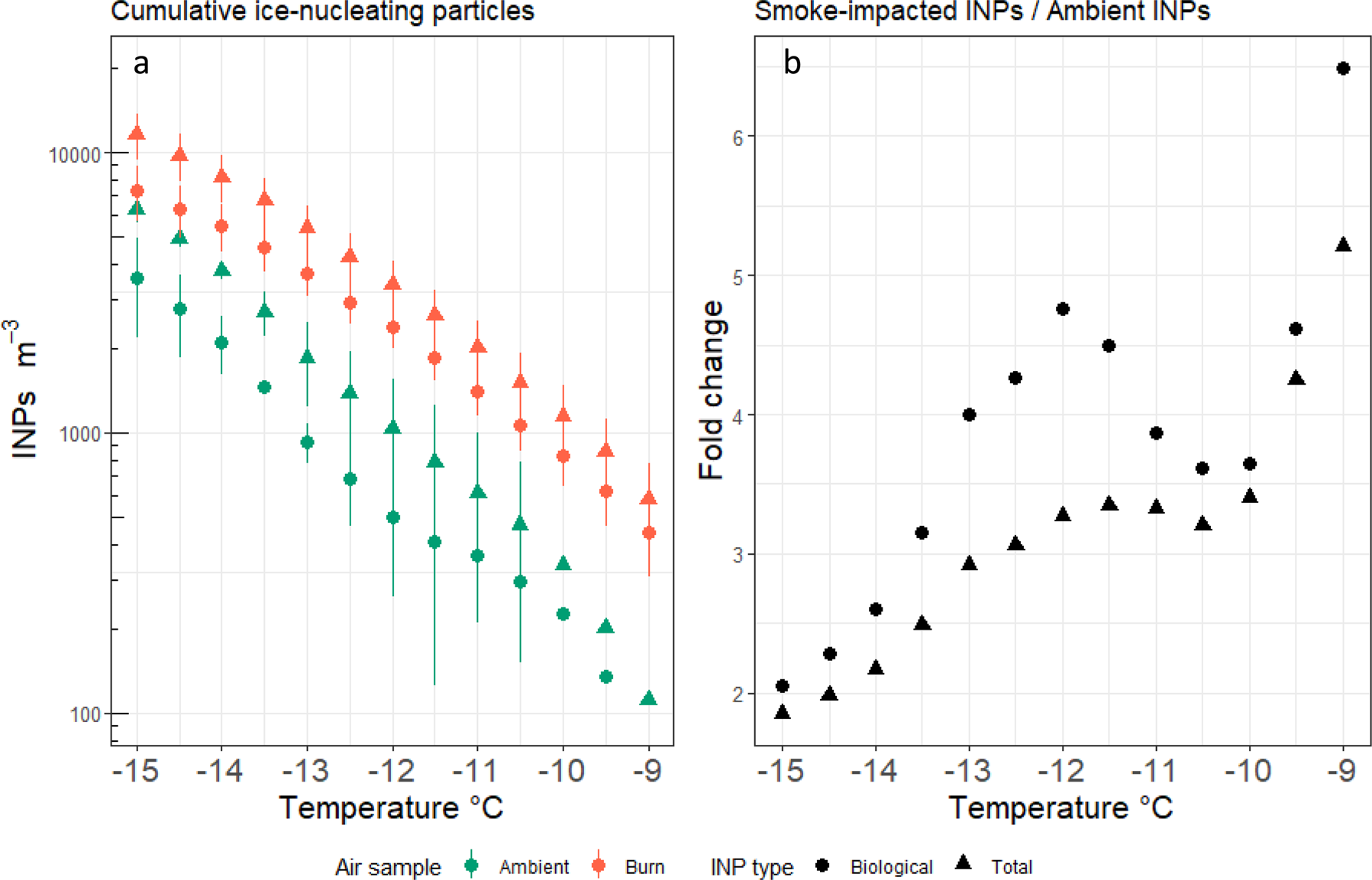

Cumulative INPs m-3 in ambient air and smoke show higher percentage of INPs are biological in smoke and overall INPs are higher across all temperatures evaluated (a). Fold-change of INPs across different temperatures between smoke and ambient air trend towards increasing differences at higher temperatures (b).
