Fig. 5: Metabolic responses of differential expressed genes.
From: Weakened resilience of benthic microbial communities in the face of climate change

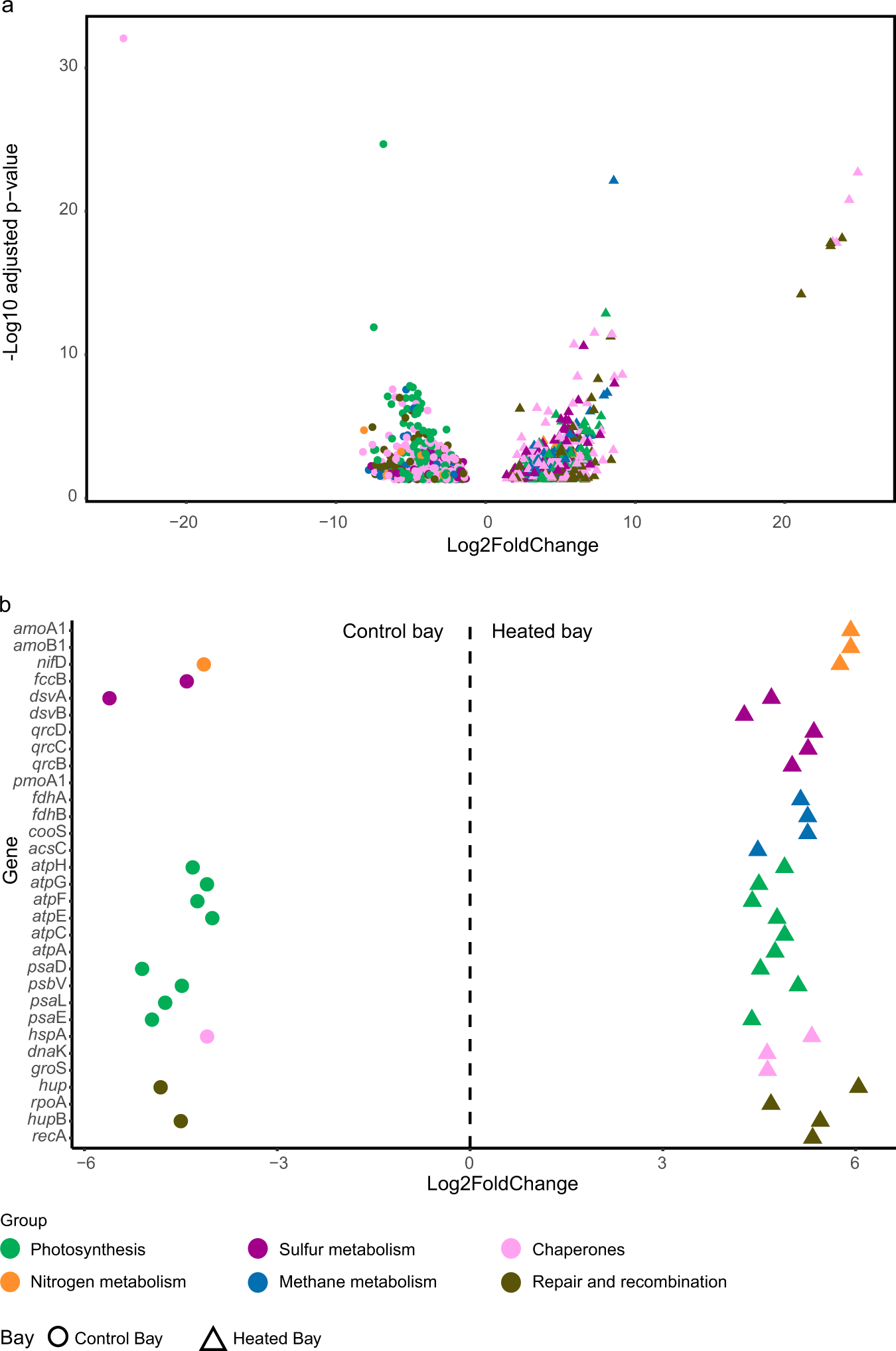

a Volcano plot of significantly differential expressed genes (adjusted p-value < 0.05) selected as related to energy metabolism, stress, and repair KEGG categories. LFC are shown on the x-axis while the –log10 adjusted p-values are shown on the y-axis for differential RNA transcripts in the control (●) and heated (▲) bays. b Selected RNA transcripts with an LFC > 4 for energy metabolism, stress, and repair. LFC is shown on the x-axis while genes are shown on the y-axis for the control (n = 12; left side) and heated (n = 12; right side) bays. The data represent mean LFCs of RNA transcripts of genes as separately calculated for each bay.
