Fig. 3: Metabolite Association Networks (MANs) of Pseudomonas and Chryseobacterium dendrogram groupings.

From: Relationship between bacterial phylotype and specialized metabolite production in the culturable microbiome of two freshwater sponges

Fig. 3

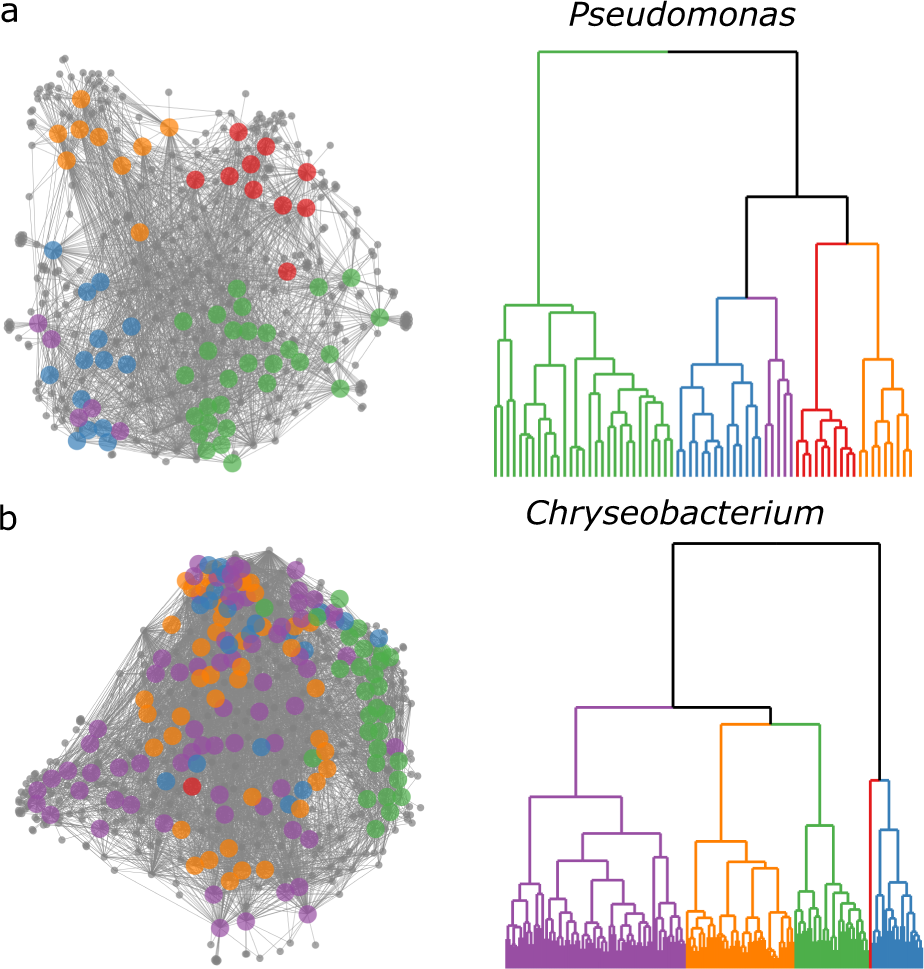

Examples of MANs that show high (a) and low (b) correlation with protein spectra dendrogram groupings. Dendrograms are approximately the same height 2.36 (a) and 2.73 (b); and both were split into five groups. MANs are colored according to subgroupings in their corresponding pseudo-phylogenetic dendrograms. Pseudomonas isolates showed SM variation that correlated with protein-based dendrogram groupings (a). Conversely, Chryseobacterium showed only marginal correlation (b).
