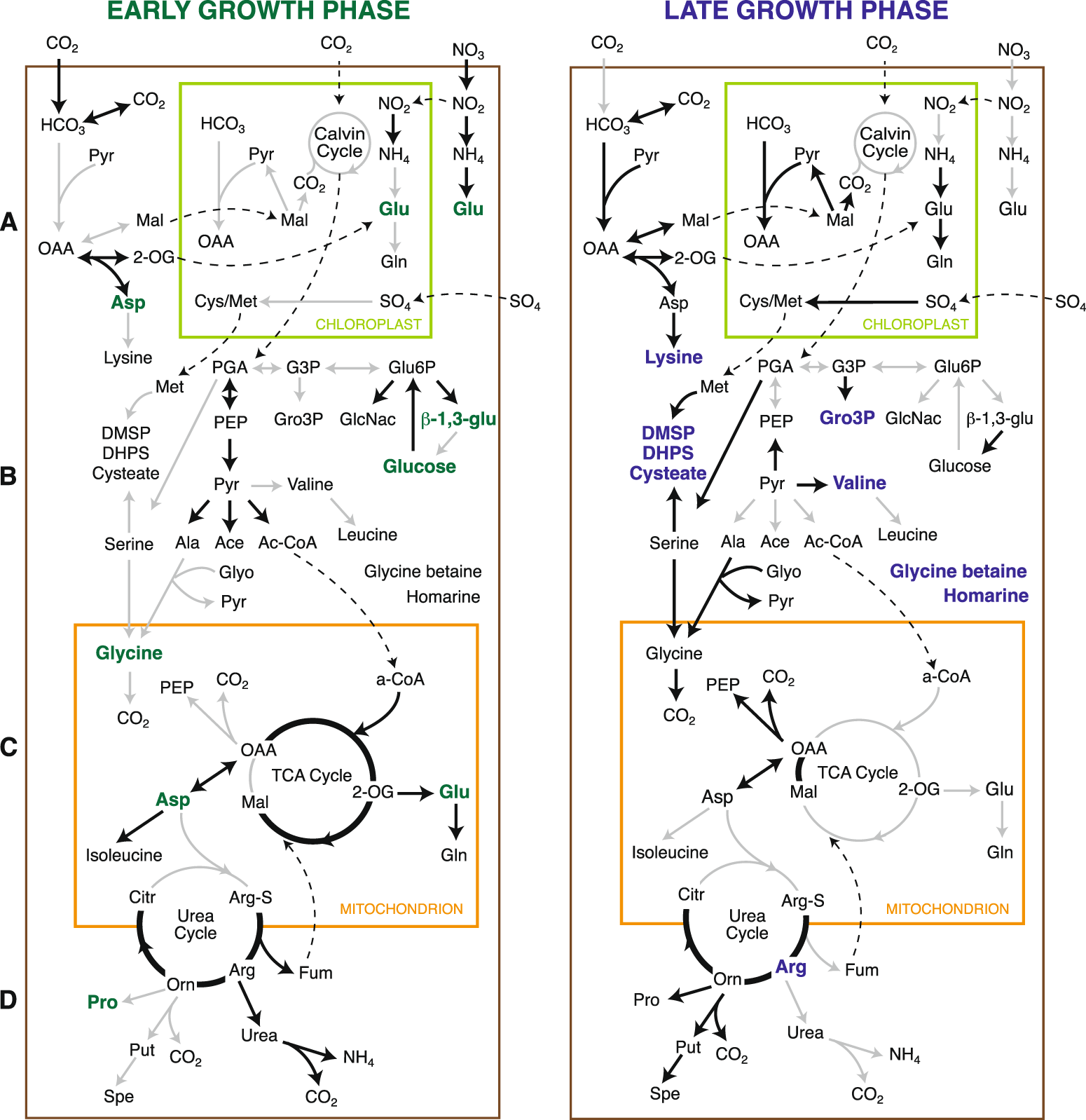

Fig. 3: Integration of diatom endometabolite and gene expression data for early-stage (left panel) and late-stage (right panel) bloom phases.

From: Growth-stage-related shifts in diatom endometabolome composition set the stage for bacterial heterotrophy

Fig. 3

Black lines indicate relative gene expression that is significantly higher in one growth stage compared to the other, gray lines indicate expression that is not significantly higher. Green font indicates significantly higher metabolite concentration in early-stage cells, and blue font indicates higher concentration in late-stage cells (see Fig. 2). A Carbon and nitrogen assimilation. B Glycolysis/Gluconeogenesis. C TCA cycle. D Urea cycle. Metabolite abbreviations are as follows: Ala alanine, Ace acetate, Ac-CoA acetyl-CoA, Arg arginine, β-1,3-glu β-1,3-glucan, Citr citrulline, Cyst cysteate, Arg-S Arginine-succinate, Fum fumarate, GlcNac N-acetyl-D-glucosamine, Glu glutamate, Gln glutamine, Glyo glyoxylate, Mal malate, G3P glyceraldehyde-3-phosphate, Gro3P glycerol-3-phosphate, 2-OG oxoglutarate, OAA oxaloacetate, PEP phosphoenolpyruvate, Orn ornithine, Pyr pyruvate, PGA phosphoglycerate, Put putrescine, Spe spermidine.
