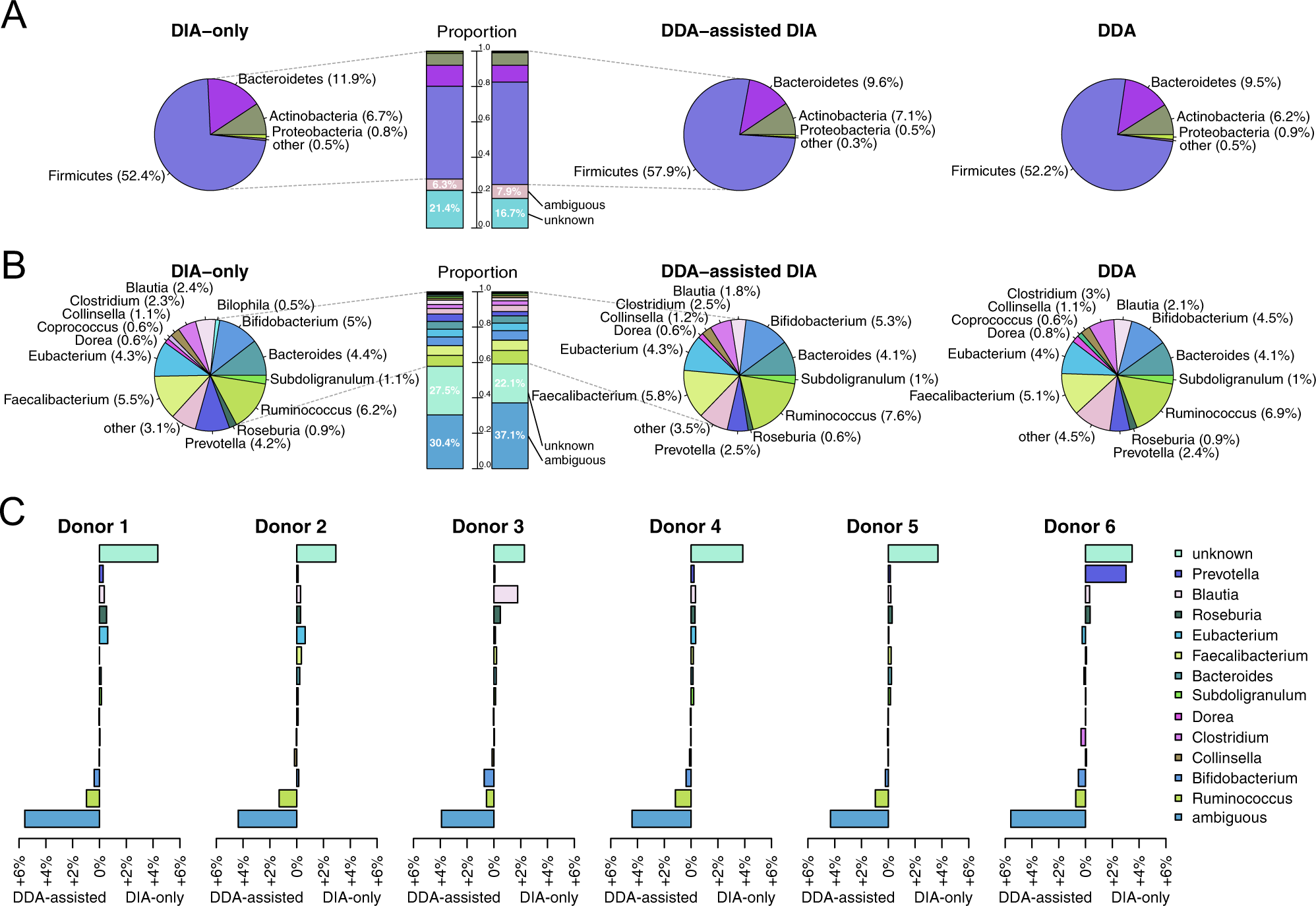

Fig. 3: Taxonomic profiles of the human fecal samples.
From: Introducing untargeted data-independent acquisition for metaproteomics of complex microbial samples
A Phylum-level and B genus-level taxonomic annotations of the peptides using the DIA-only approach (left panel), the DDA-assisted DIA approach (middle panel), or only the pooled DDA data (right panel). Phyla or genera having less than 0.5% of the total peptides were aggregated to category other. C Differences between the DIA-only and the DDA-assisted DIA results of the individual human fecal samples, measured by the differences of the observed percentages between the two approaches.
