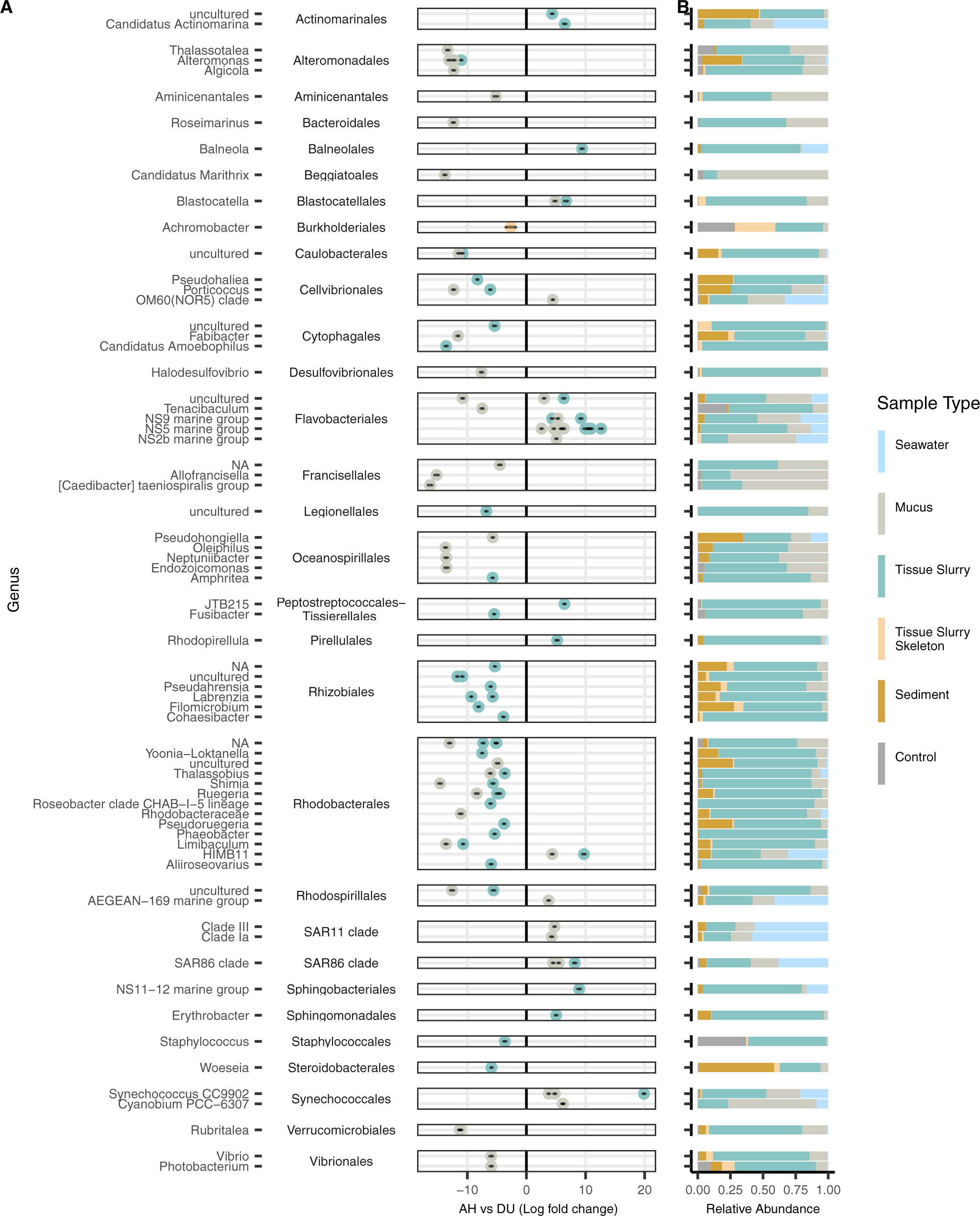

Fig. 5: Microbial amplicon sequence variants (ASVs) associated with unaffected areas on diseased colonies (DU).

From: A meta-analysis of the stony coral tissue loss disease microbiome finds key bacteria in unaffected and lesion tissue in diseased colonies

Fig. 5

Differential abundances between (A) apparently healthy (AH) vs DU. The y axis depicts ASVs grouped by genus and then by order. Only ASVs with a Padj < 0.001, W statistic >90, and a log-fold change <−1.5 and >1.5 were visualized. Coral compartments (i.e., mucus, tissue slurry, and tissue slurry skeleton) were included and Acropora spp. were excluded from this analysis. B The relative abundance of taxa enriched in AH and DU by sample type, which includes laboratory controls (“Control”) encompassing field, lab, kit, and mock communities.
