Fig. 2: Networks analysis revealing the co-occurrence patterns between microbial groups.

From: Rapid differentiation of soil and root microbiomes in response to plant composition and biodiversity in the field

Fig. 2

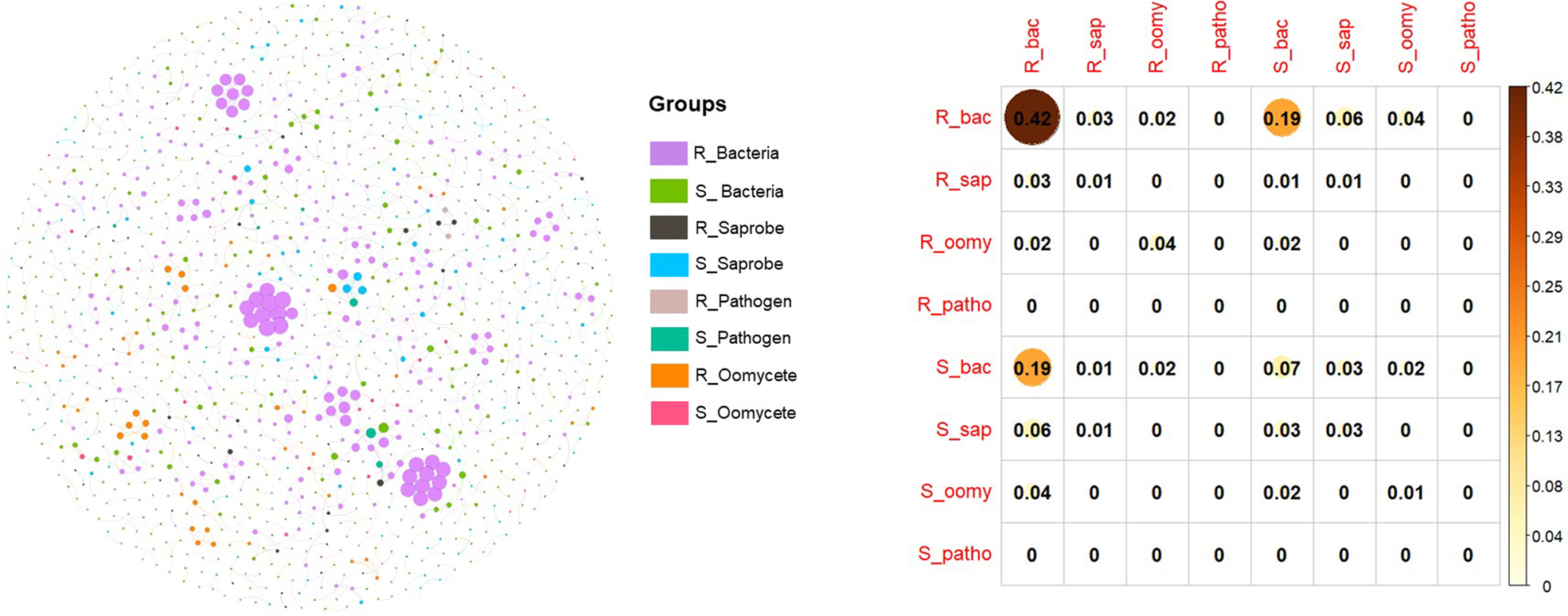

The nodes were colored according to group labels. A connection represents a strong (Spearman’s correlation coefficient r > 0.8) and significant (p < 0.001) correlation. The size of each node is proportional to the number of connections. “R”, “S” represent root and soil samples, respectively.
