Fig. 2: Pairwise MSI interactions of Candidatus Pacearchaeota archaeon UWMA 0287 with other microbes in the community.

From: Metagenome-based metabolic modelling predicts unique microbial interactions in deep-sea hydrothermal plume microbiomes

Fig. 2

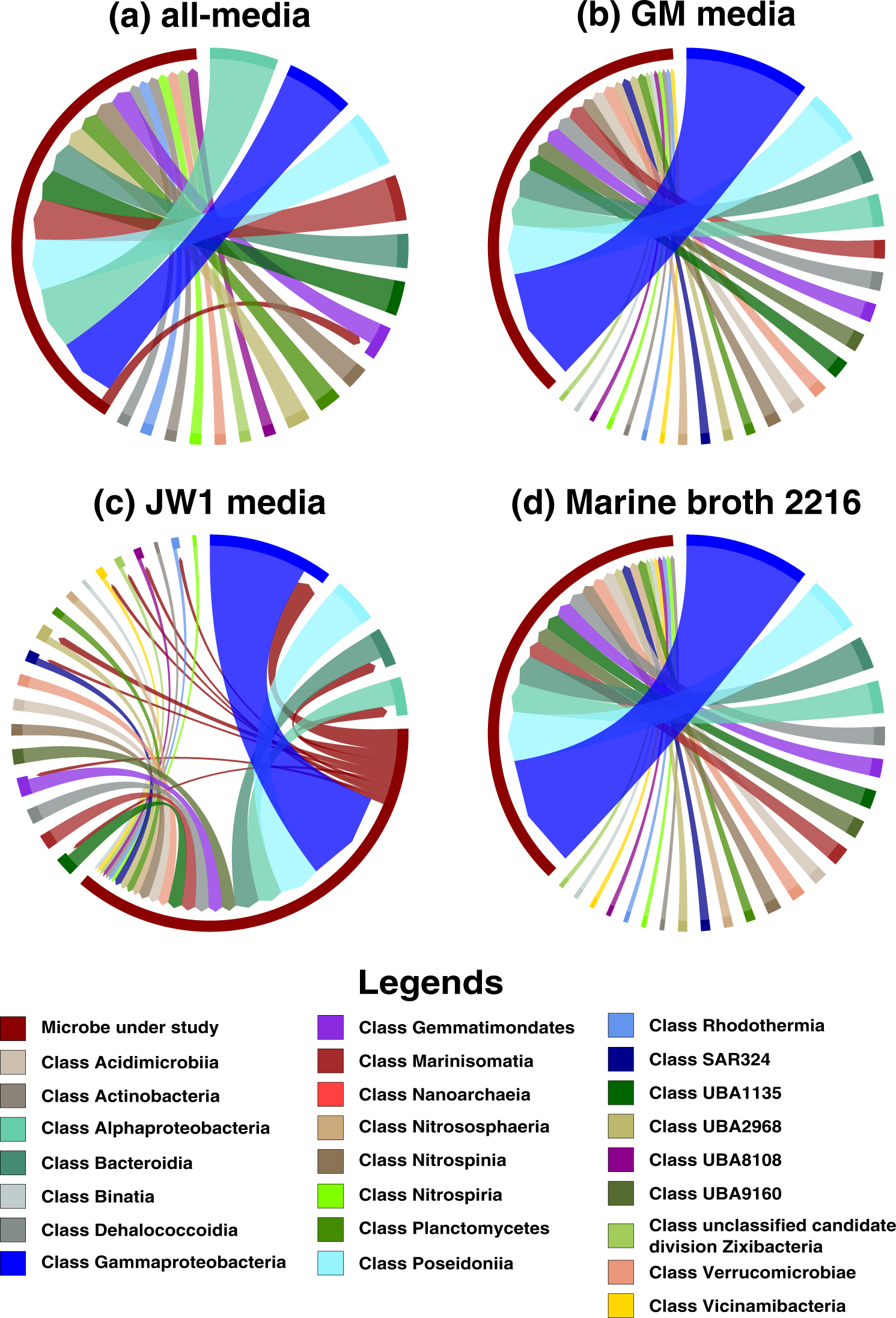

This chord diagram shows all possible metabolic interactions between Candidatus Pacearchaeota archaeon UWMA 0287 and other microbial classes present in the Guaymas microbiome in four different media conditions (a) all-media, (b) GM media, (c) JW1 media, (d) Marine Broth 2216. All the interacting microbes are grouped under their corresponding microbial class except Candidatus Pacearchaeota archaeon UWMA 0287. The chord starts from the donor microbe/class towards the recipient microbe/class. The thickness of the chord represents the number of microbes participating in the interaction from the same class. The colours are mapped to microbial classes.
