Fig. 5: Genome maps of four novel GTA producers.

From: Extracellular vesicles are the main contributor to the non-viral protected extracellular sequence space

Fig. 5

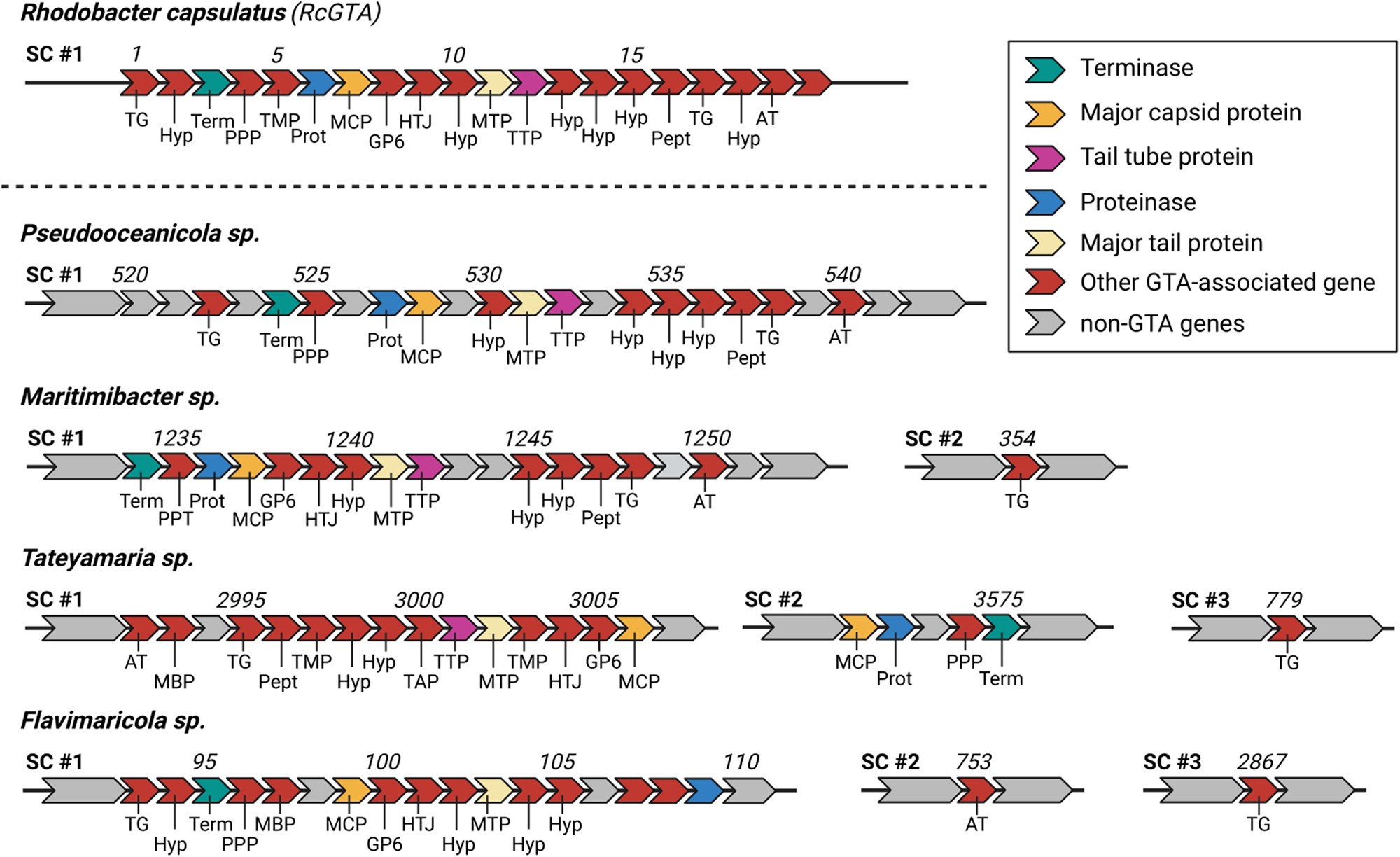

Organization of genes for the four identified, potentially novel GTAs, compared to the GTA cluster of Rhodobacter capsulatus. ORF number is given above the map, encoded protein function is indicated below. Non-GTA encoding genes are gray, GTA-associated genes are shown in red. In addition, core GTA encoding genes are colored accordingly. Encoding protein function is given below: AT acetyltransferase, MBP membrane bound protein, TG transglycosylase, Pept phage cell wall peptidase, TMP transmembrane protein, Hyp hypothetical, TAP tail assembly protein, TTP phage tail tube protein, MTP phage major tail protein, HTJ head-tail joining protein, GP6 gp6-like protein, MCP major capsid protein, Prot proteinase, PPP phage portal protein.
