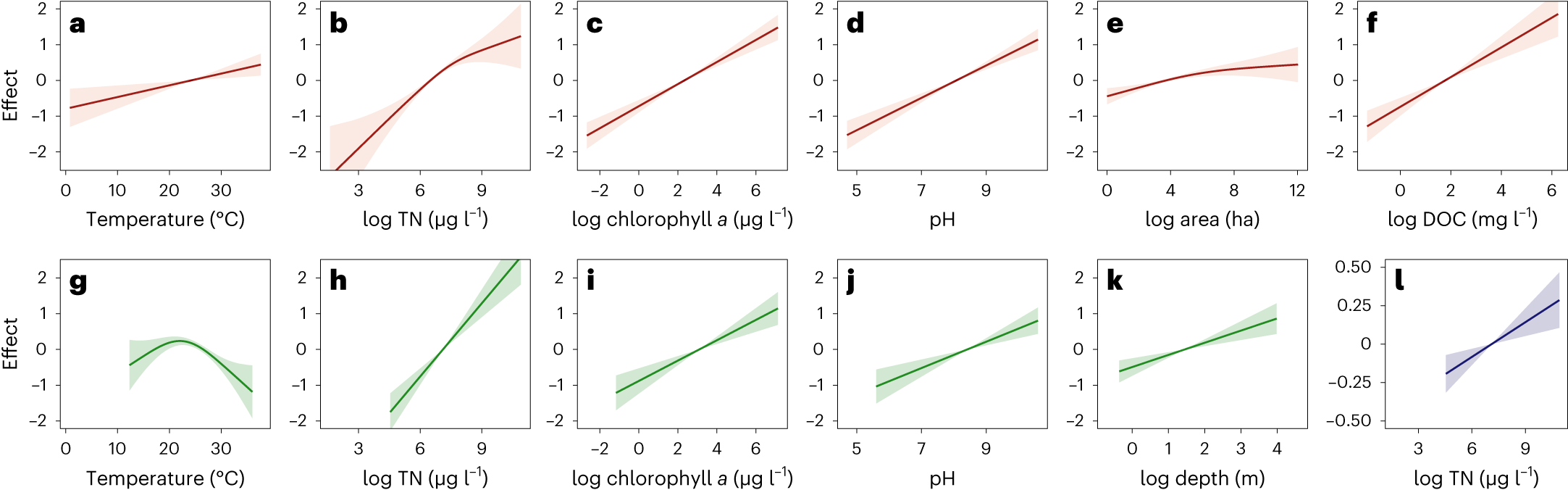

Fig. 3: Partial effects of environmental parameters.
From: Geographic redistribution of microcystin hotspots in response to climate warming
a–f, Partial effects of the environmental parameters on the log odds of microcystin being detected (that is, microcystin occurrence) for the logistic model. g–l, Partial effects of the environmental parameters on concentrations above the detection limit for the log-normal model; g–k, show the partial effect on log(μ), where μ is the predicted median of the microcystin concentration distribution, while l shows the effect on log(σ), where σ is the predicted standard deviation of the log microcystin concentration above the detection limit; Methods. The ranges on the horizontal axes represent the ranges observed in the sampled data. The range for the log-normal model is smaller than for the logistic model because it only includes the range of observed values for those samples where the microcystin concentration was above the detection limit. The shaded areas represent the 95% confidence intervals.
