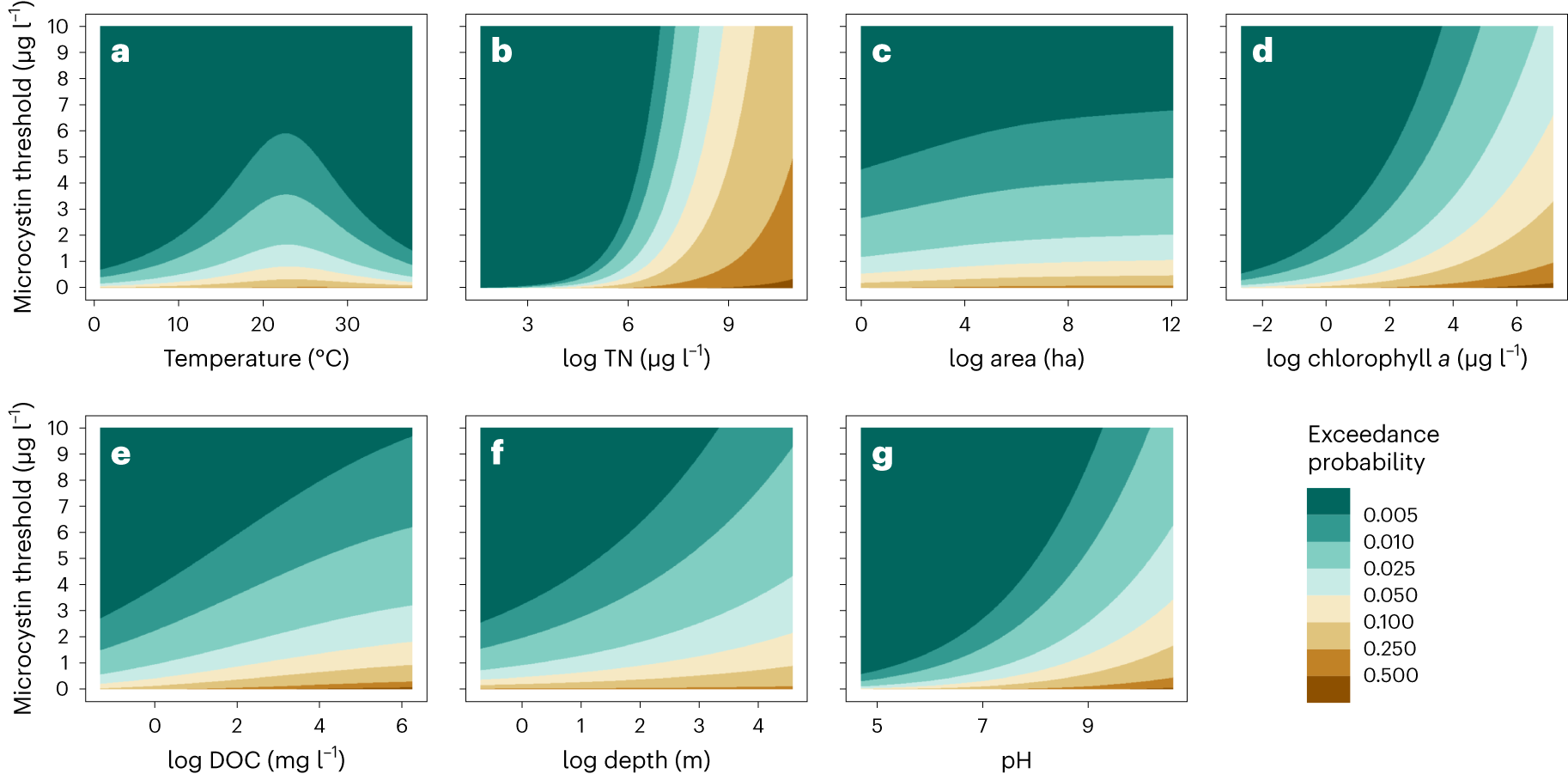

Fig. 4: Exceedance probabilities under varying temperature, log TN, log area, log chlorophyll a, log DOC, log depth and pH.
From: Geographic redistribution of microcystin hotspots in response to climate warming
For easier visual interpretation the plots are grouped into selected exceedance probability bins, although exceedance probabilities are continuous. a–g, For a given microcystin threshold on the vertical axis the colours represent the exceedance probability as a function of temperature (a), TN (b), area (c), chlorophyll a (d), DOC (e), depth (f) and pH (g). In each panel the other (log-transformed) environmental variables are held at their median (pH of 8.27, log chlorophyll a of 2.23, log TN of 6.53, temperature of 24.4 °C, log DOC of 1.77, log depth of 1.57 and log area of 3.55).
