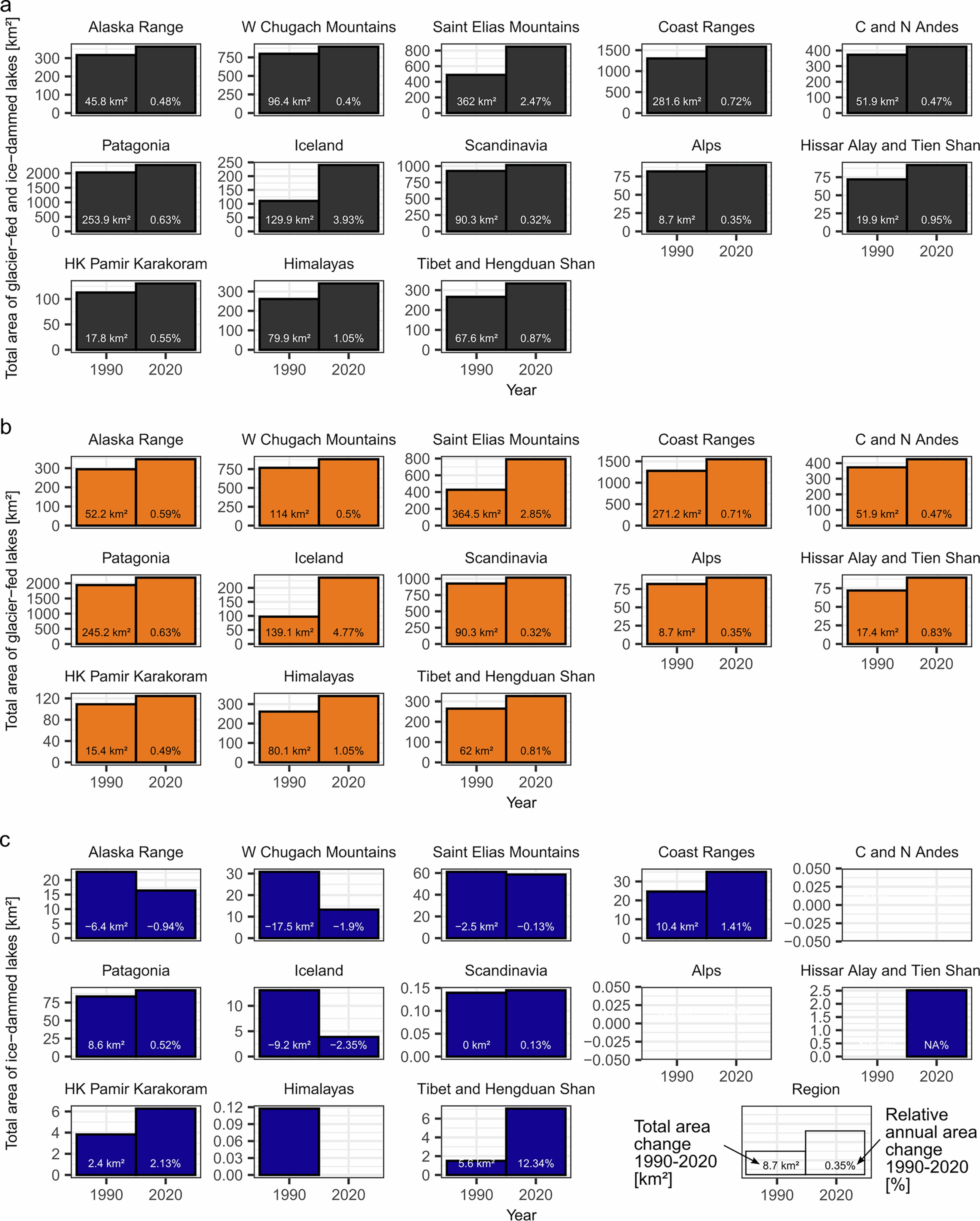

Extended Data Fig. 5: Regional changes in lake area.
From: Progressively smaller glacier lake outburst floods despite worldwide growth in lake area
Bars show changes in total lake area for a, all lakes, b, only glacier-fed lakes, c, and ice-dammed lakes. Number in left bars show the absolute change in lake area between 1990 and 2020. Numbers in right bars is the relative annual change in lake area between 1990 and 2020. Missing bars mean that ref. 8 did not map lake areas for this dam
