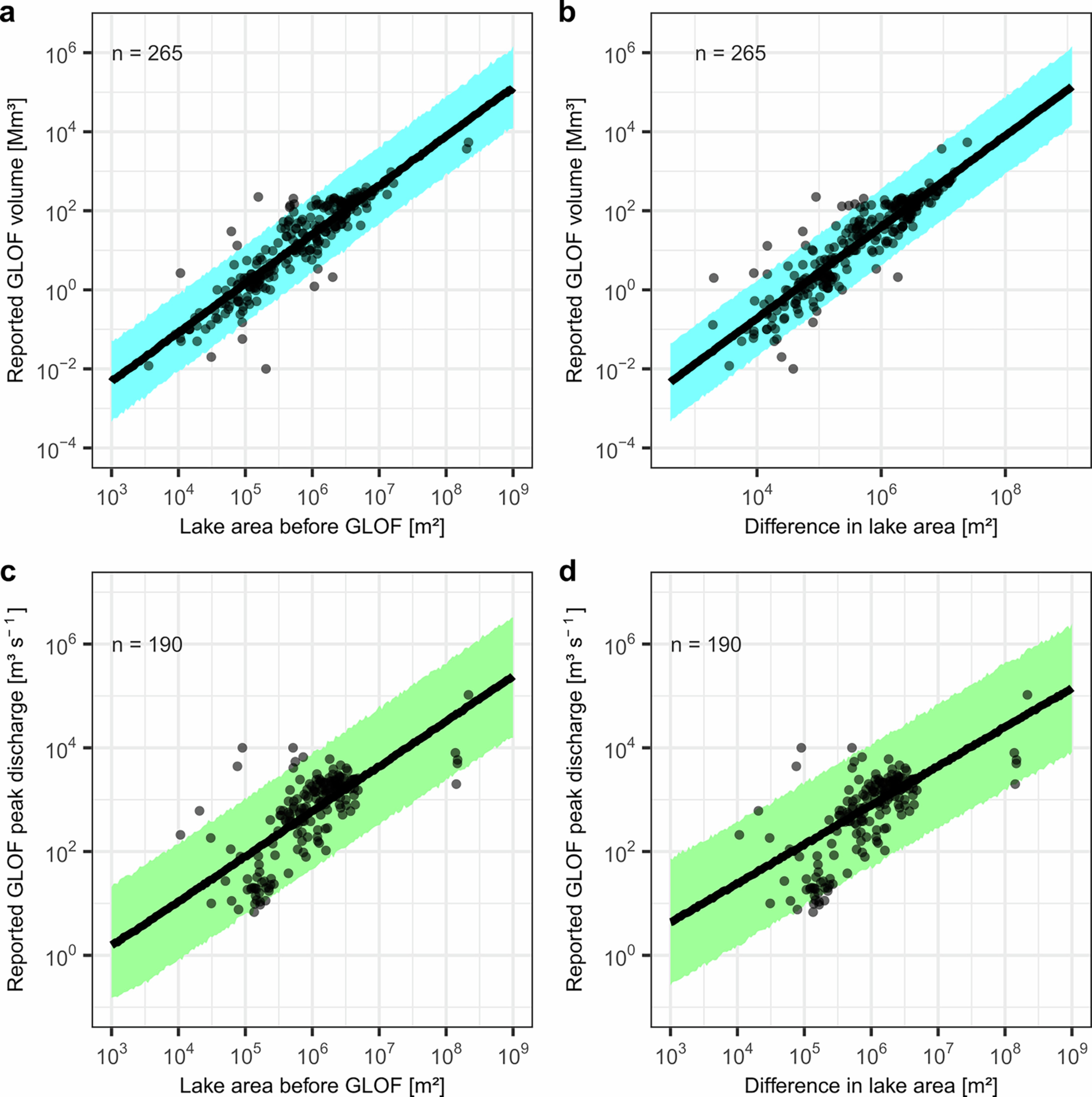

Extended Data Fig. 1: Scaling relationships between lake area and other proxies for GLOF magnitude.
From: Progressively smaller glacier lake outburst floods despite worldwide growth in lake area
a, Reported GLOF volume vs. lake area before the GLOF. b, Reported GLOF volume vs. loss in lake area due to the GLOF. c, Reported peak discharge vs. lake area before the GLOF. d, Reported GLOF peak discharge vs. loss in lake area due to the GLOF. In all panels, thick black line is the median, and shade is the 95% highest density interval of the posterior predictive distribution from regression models that predict flood volume or peak discharge from lake area.
