Fig. 1: Insertion frequency in and around genes expressing efflux pumps and their regulators in E. coli treated with piperacillin and tazobactam, both separately and in combination, relative to an unstressed control. | npj Antimicrobials and Resistance

Fig. 1: Insertion frequency in and around genes expressing efflux pumps and their regulators in E. coli treated with piperacillin and tazobactam, both separately and in combination, relative to an unstressed control.

From: Tazobactam selects for multidrug resistance

Fig. 1

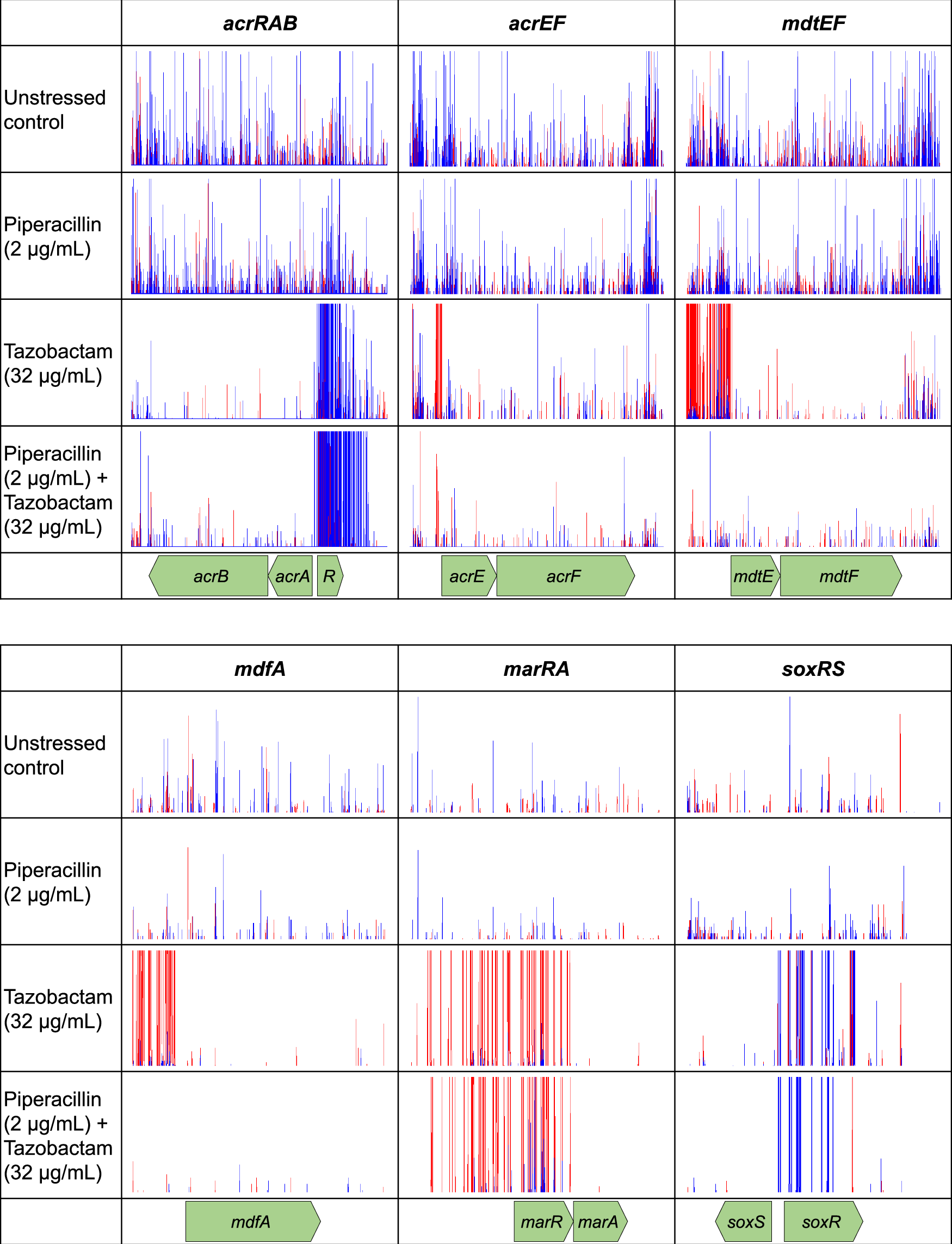

Each vertical line indicates the location of a transposon insertion, red indicates the transposon orientation is left-to-right and blue indicates right-to-left as viewed.
