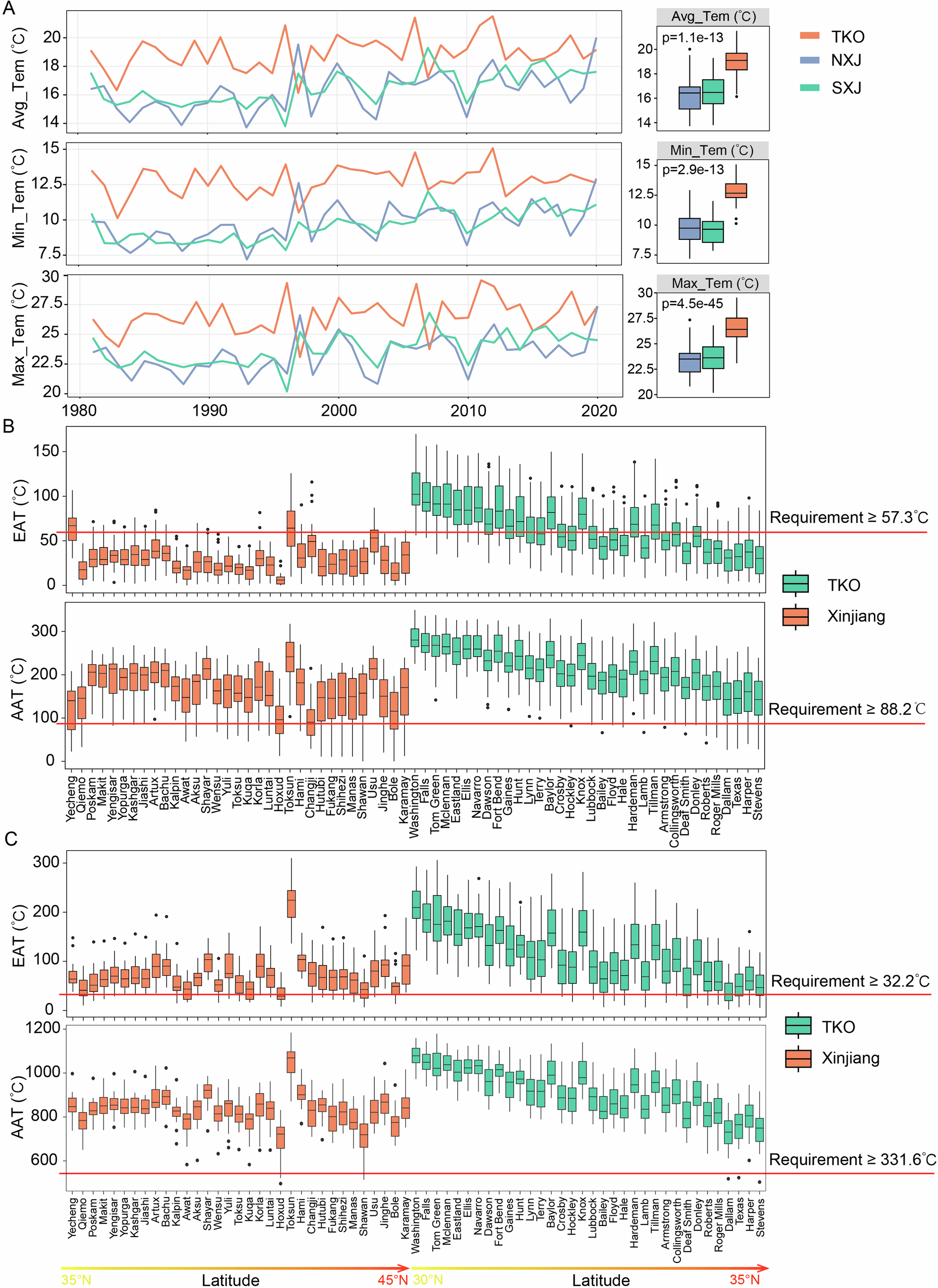

Fig. 2: Temperature and thermal conditions at emergence stage and seedling stage in 1980-2020.
From: The impact of temperature on cotton yield and production in Xinjiang, China
A Daily mean temperature, minimum temperature and maximum temperature at emergence stage and seedling stage in NXJ, SXJ and TKO (1981–2020). Effective accumulated temperature (EAT) and active accumulated temperature (AAT) at emergence stage (B) and seedling stage (C) in 34 counties of TKO and 33 counties of Xinjiang during 1981–2020. The figure is drawn using R project and Adobe Illustrate. All the data in this figure are listed in Supplementary Data 1–2.
