High-speed emerging memories for AI hardware accelerators

Nature Reviews Electrical Engineering volume 1, pages 24–34 (2024)Cite this article

Subjects

Abstract

Applications of artificial intelligence (AI) necessitate AI hardware accelerators able to efficiently process data-intensive and computation-intensive AI workloads. AI accelerators require two types of memory: the weight memory that stores the parameters of the AI models and the buffer memory that stores the intermediate input or output data when computing a portion of the AI models. In this Review, we present the recent progress in the emerging high-speed memory for AI hardware accelerators and survey the technologies enabling the global buffer memory in digital systolic-array architectures. Beyond conventional static random-access memory (SRAM), we highlight the following device candidates: capacitorless gain cell-based embedded dynamic random-access memories (eDRAMs), ferroelectric memories, spin-transfer torque magnetic random-access memory (STT-MRAM) and spin-orbit torque magnetic random-access memory (SOT-MRAM). We then summarize the research advances in the industrial development and the technological challenges in buffer memory applications. Finally, we present a systematic benchmarking analysis on a tensor processing unit (TPU)-like AI accelerator in the edge and in the cloud and evaluate the use of these emerging memories.

Key points

  • The global buffer in artificial intelligence (AI) hardware (for example, the tensor processing unit (TPU)) is traditionally based on static random-access memory (SRAM), which is expensive in the silicon footprint and suffers from high stand-by leakage power. Emerging memories with high speed and high endurance could replace SRAM as global buffers.

  • A capacitorless two-transistor (2T) gain cell, an implementation of embedded dynamic random-access memory (DRAM), uses amorphous oxide semiconductors as the channel material allowing a high data retention time.

  • Ferroelectric memories such as the ferroelectric field effect transistor (FeFET) and magnetic memories such as spin-transfer torque magnetic random-access memory (STT-MRAM) or spin-orbit torque magnetic random-access memory (SOT-MRAM) could be tailored to improve their cycling endurance, making them viable as global buffer candidates.

  • Three-dimensional integration that stacks emerging memories and their access transistors all together at the back end of line (BEOL) paves the way for high-density global buffer solutions that are even denser than the leading edge node SRAMs.

  • Leading edge node SRAM is still a competitive high-performance technology for AI hardware in the cloud, whereas emerging memories exhibit more advantages in AI hardware at the edge where minimizing the stand-by leakage power is critical.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

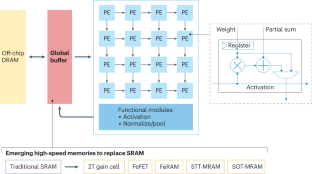

Fig. 1: Generic diagram of the digital MAC engines used in tensor processing unit (TPU)-like systolic-array architectures.

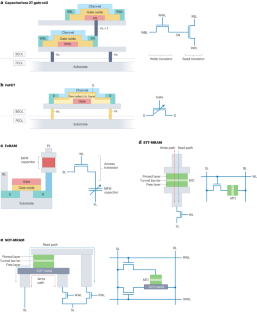

Fig. 2: Schematics and circuit diagrams of high-speed memory candidates.

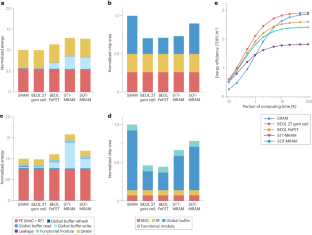

Fig. 3: Benchmarking analysis for high-speed memory candidates on cloud and edge TPUs.
