Fig. 3: X-ray diffractogram and crystalline analysis of Li3InCl6 electrolytes.
From: Design and evaluations of nano-ceramic electrolytes used for solid-state lithium battery

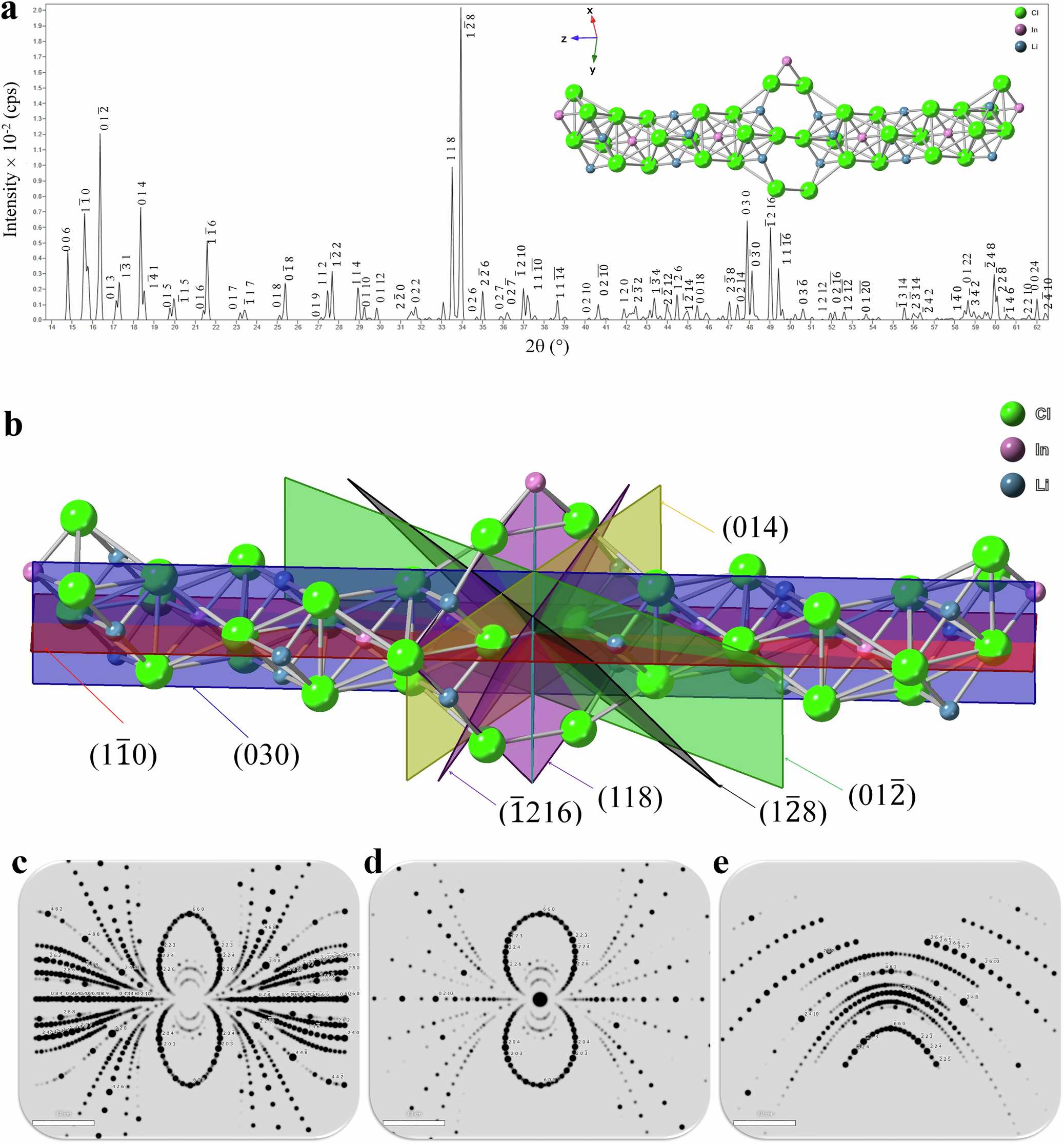

a The PXRD pattern of halide ceramic electrolytes (main) and ball-and-stick depiction of 1 × 1 × 2 dual cell units (insert), b the corresponding most intense diffraction assigned to hkl planes from (a) shown in a 3D plane rendering using CrystalMaker, and c the cylindrical Laue diffractogram scattering from [311] beam, d the front Laue diffractogram, and e the top Laue diffractogram is based on the Li3InCl6 2 × 2 × 2 supercell.
