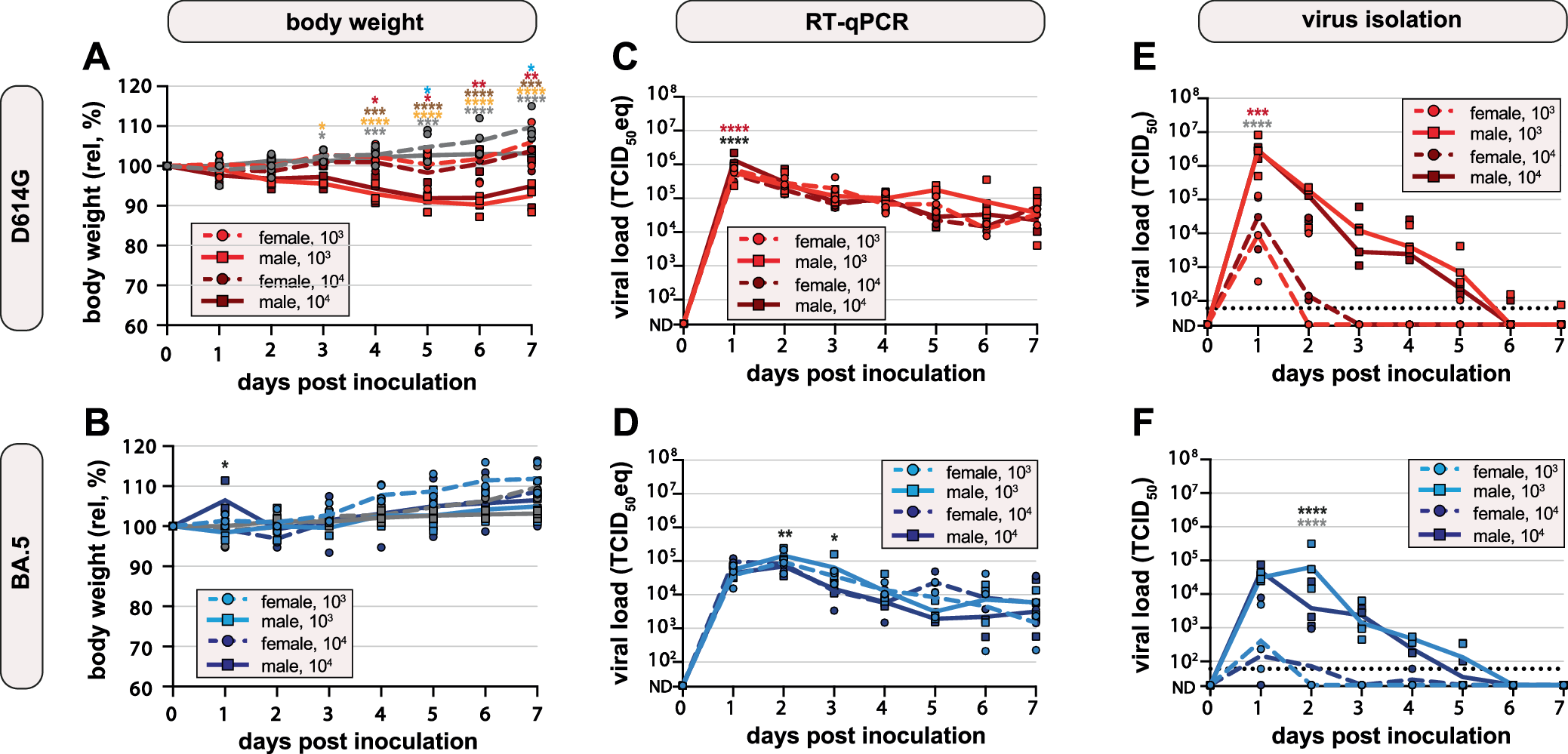

Fig. 1: Body weight and viral loads in dose-comparison experiment.
From: Characterization of a SARS-CoV-2 Omicron BA.5 direct-contact transmission model in hamsters

A, B Body weights were recorded daily. Relative body weights over time after A D614G or B Omicron BA.5 inoculation, day 0 was set at 100%. Symbols represent individual hamsters (n = 3 per group); line represents group means. Age- and sex-matched uninfected hamsters are shown in gray. C, D Viral load in throat swabs after C D614G or D Omicron BA.5 inoculation was measured by RT-qPCR and plotted as TCID50 eq/ml over time. Undetermined values (ND) were set as 20 TCID50 eq/ml. Symbols represent individual hamsters (n = 3 per group); line represents group geometric means. E, F Infectious virus in throat swabs after E D614G or F Omicron BA.5 inoculation was measured by virus isolation and plotted as TCID50/ml over time. The dotted lines represent the lower limit of detection (60). Undetermined values (ND) were set as 20 TCID50. Symbols represent individual hamsters (n = 3 per group); line represents group geometric means. Groups were compared using two-way ANOVA, corrected with Tukey. Asterisks indicate significant differences at specific timepoints and are shown in colors (female 103 vs. male 103: gray; female 104 vs. male 104: red; male 103 vs. male 104: black; male 103 vs. male uninfected: orange; male 104 vs. male uninfected: brown; female 104 vs. female uninfected: blue). *p < 0.05; **p < 0.01; ***p < 0.001.
