Fig. 3: Phylogenetic analyses of Nucleocytoviricota cytochrome b5 proteins.
From: Cytochrome b5 occurrence in giant and other viruses belonging to the phylum Nucleocytoviricota

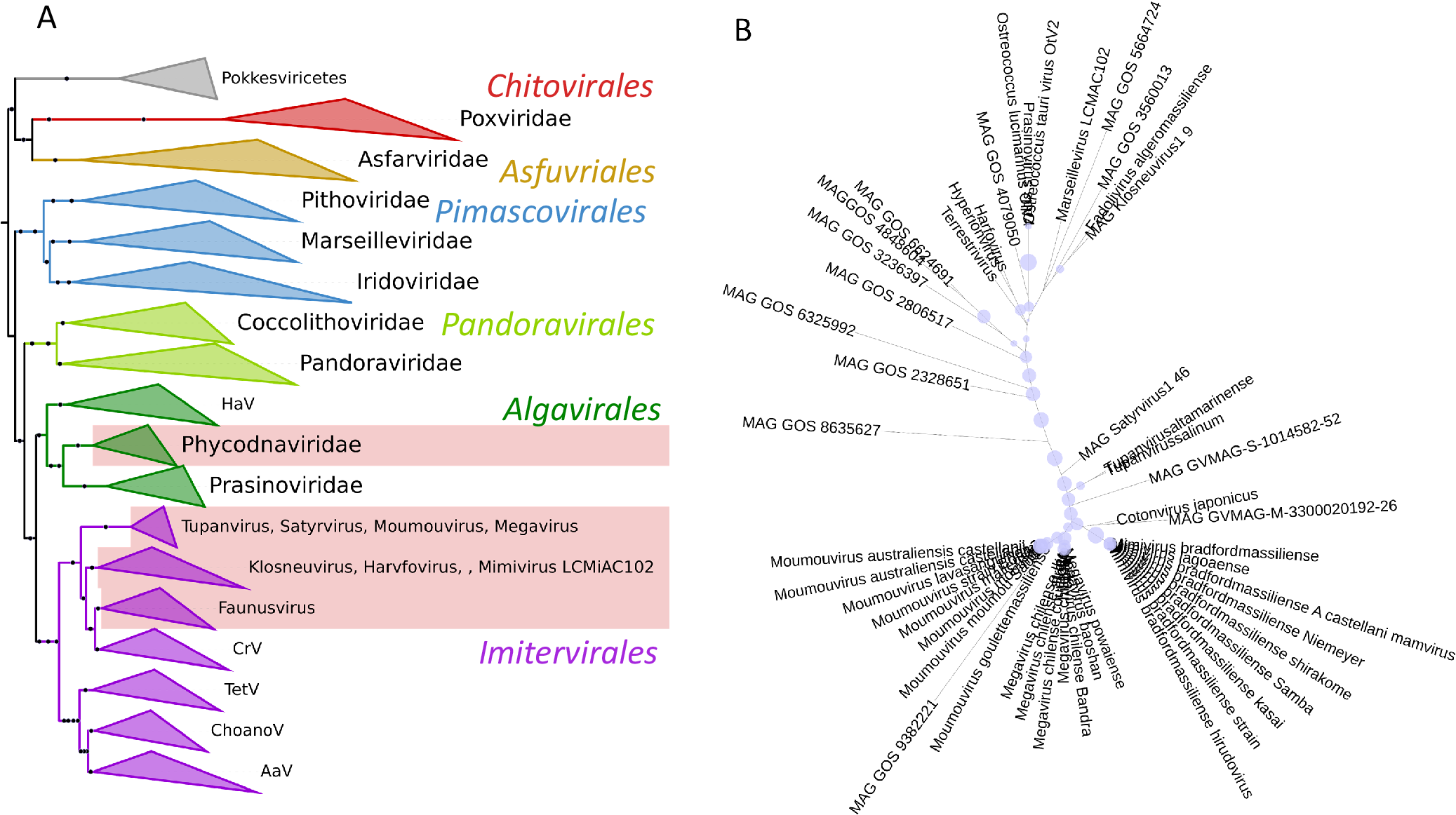

A Nucleocytoviricota phylogeny based on marker genes showing clades with cytochrome b5.The 7-marker gene Nucleocytoviricota phylogeny was modified and pruned from Aylward (3), retaining their nomenclature and marker genes for guidance. The pale red blocks indicate the presence of cytochrome b5 in these clades. AaV Aureococcus anophagefferens virus; ChoanoV choanoflagellate virus, CrV Cafeteria robergensis virus, HaV Heterosigman akashiwo virus, TetV tetraselmis virus. B Phylogeny of viral cytochrome b5 proteins. The maximum likelihood phylogenetic tree shows the relationship of the viral cytochrome b5 proteins. Bootstrap values are represented as proportional blue circles at nodes, with the largest blue circle corresponding to a bootstrap value of 100%. Figures prepared using iTol.
