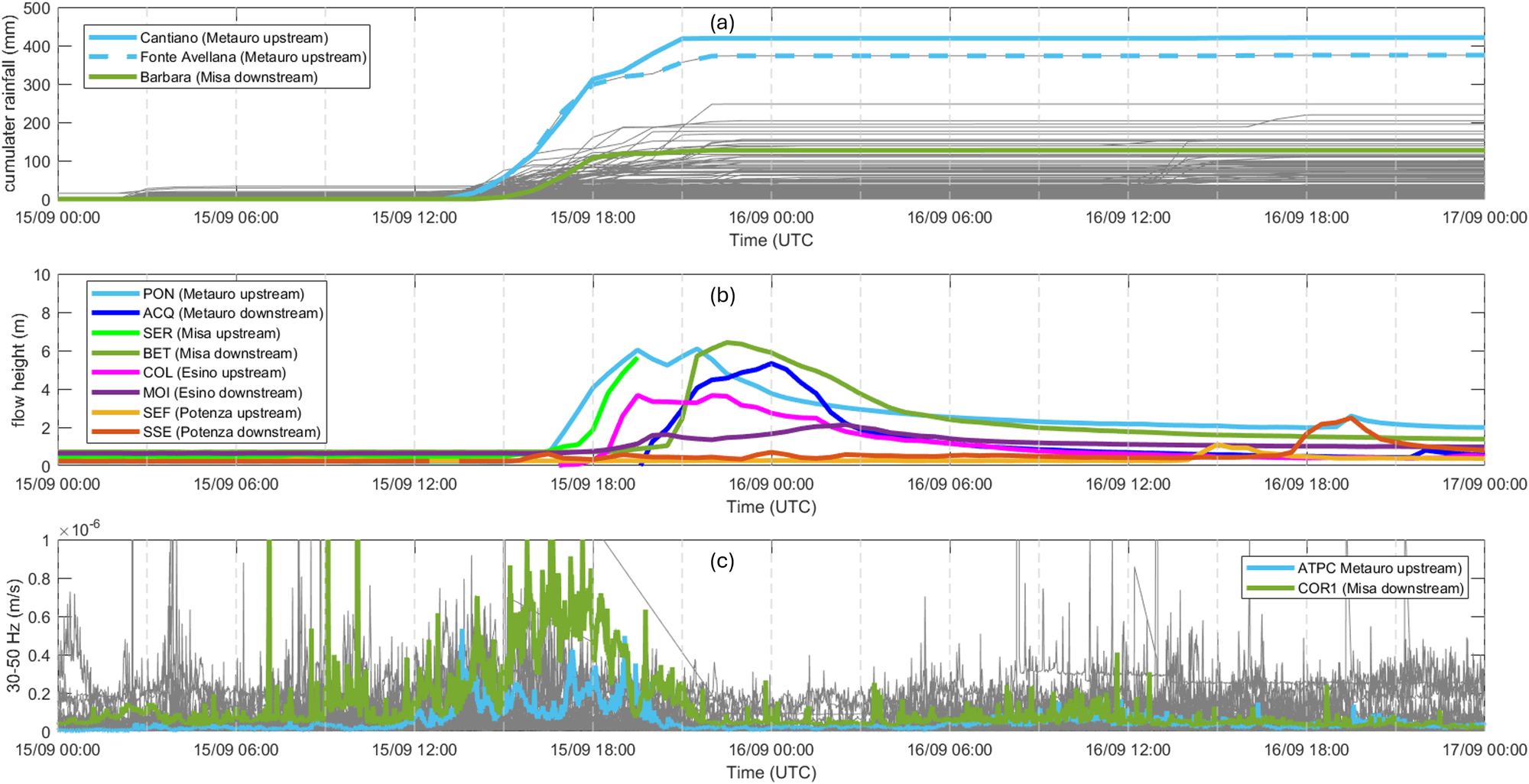

Fig. 2: Temporal evolution of raingauges, hydrometer, and seismic data.
From: Seismic signature of an extreme hydro-meteorological event in Italy
a Time series of the cumulated rainfall (mm) between the 15 and the 17 September 2022 obtained from all raingauges considered in this study (gray lines). Please note that the distribution of rainguages is shown in Fig. S1. The light blue lines represent the cumulated rainfall registered at Cantiano and Fonte Avellana stations, which are 6.9 km apart and are located upstream of Metauro river; the dark green line shows the same quantity recorded at the Barbara station in the lower part of the Misa river. b Time series of the flow heights (in meters) registered between the 15 and 17 September 2022 by eight hydrometers located in the river basin involved in the event (whose location is shown in Fig. 1a). c Envelopes on the seismic signals for the stations shown in Fig. 1a (gray lines) and with the stations COR1 and ATPC highlighted.
