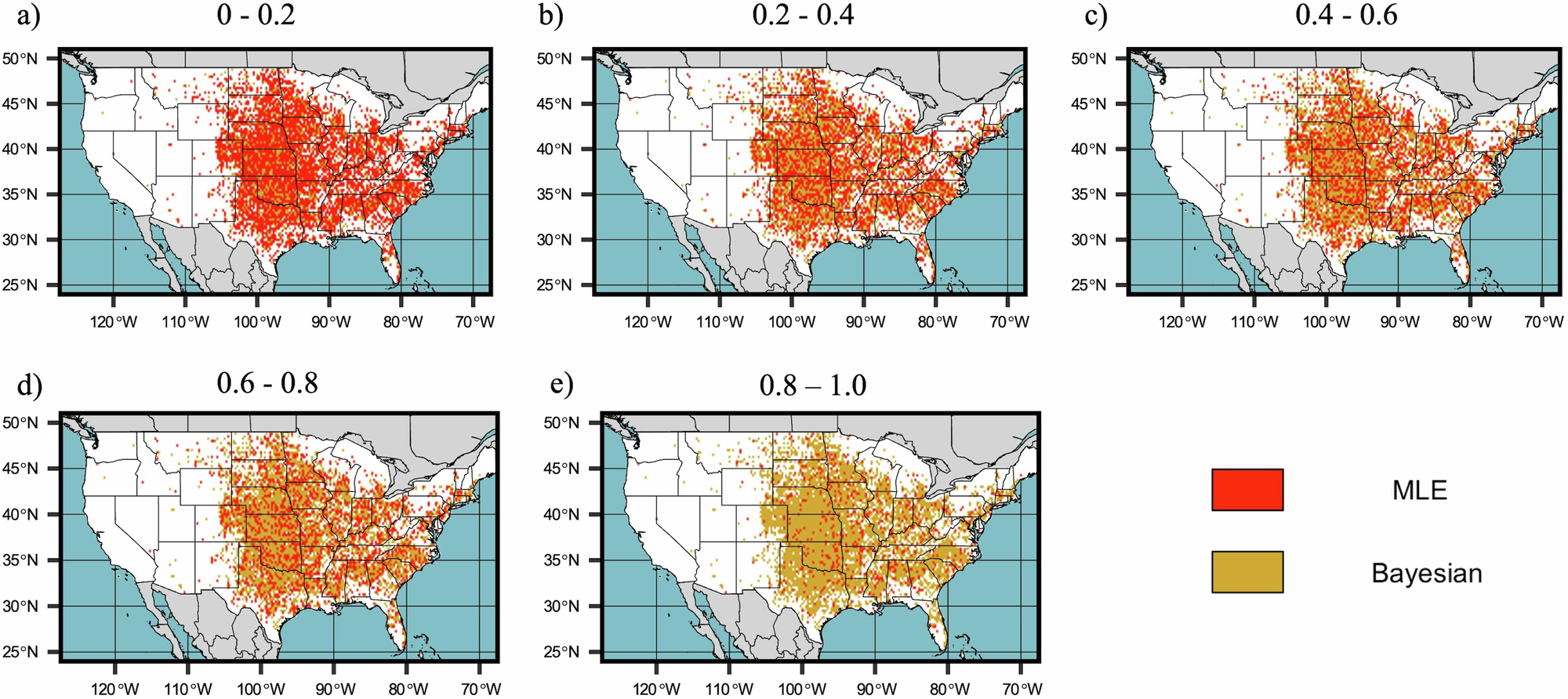

Fig. 5: Comparison of the performance among MLE and Bayesian estimation techniques.
From: Bayesian estimation of the likelihood of extreme hail sizes over the United States
This illustrates the better estimation technique based on RRMSE value at different quantile ranges of annual maximum hail size for the grids having at least 15 annual maximum hail size observation at 0.25° × 0.25° resolution. The quantile ranges are taken for a 0–0.2, b 0.2–0.4, c 0.4–0.6, d 0.6–0.8, e 0.8–1.
