Fig. 6: Comparison of pre-flood SBAS-InSAR (June 14, 2023, to May 27, 2024), two post-flood DInSAR periods (May 27 to July 14, 2024, and May 27 to July 26, 2024), and predicted deformation based on SBAS-InSAR for two areas (June 2, 2023, to November 23, 2024). | npj Natural Hazards

Fig. 6: Comparison of pre-flood SBAS-InSAR (June 14, 2023, to May 27, 2024), two post-flood DInSAR periods (May 27 to July 14, 2024, and May 27 to July 26, 2024), and predicted deformation based on SBAS-InSAR for two areas (June 2, 2023, to November 23, 2024).

From: Urban subsidence zones prone to flooding: mitigated deformation trends post-2024 Guilin megaflood

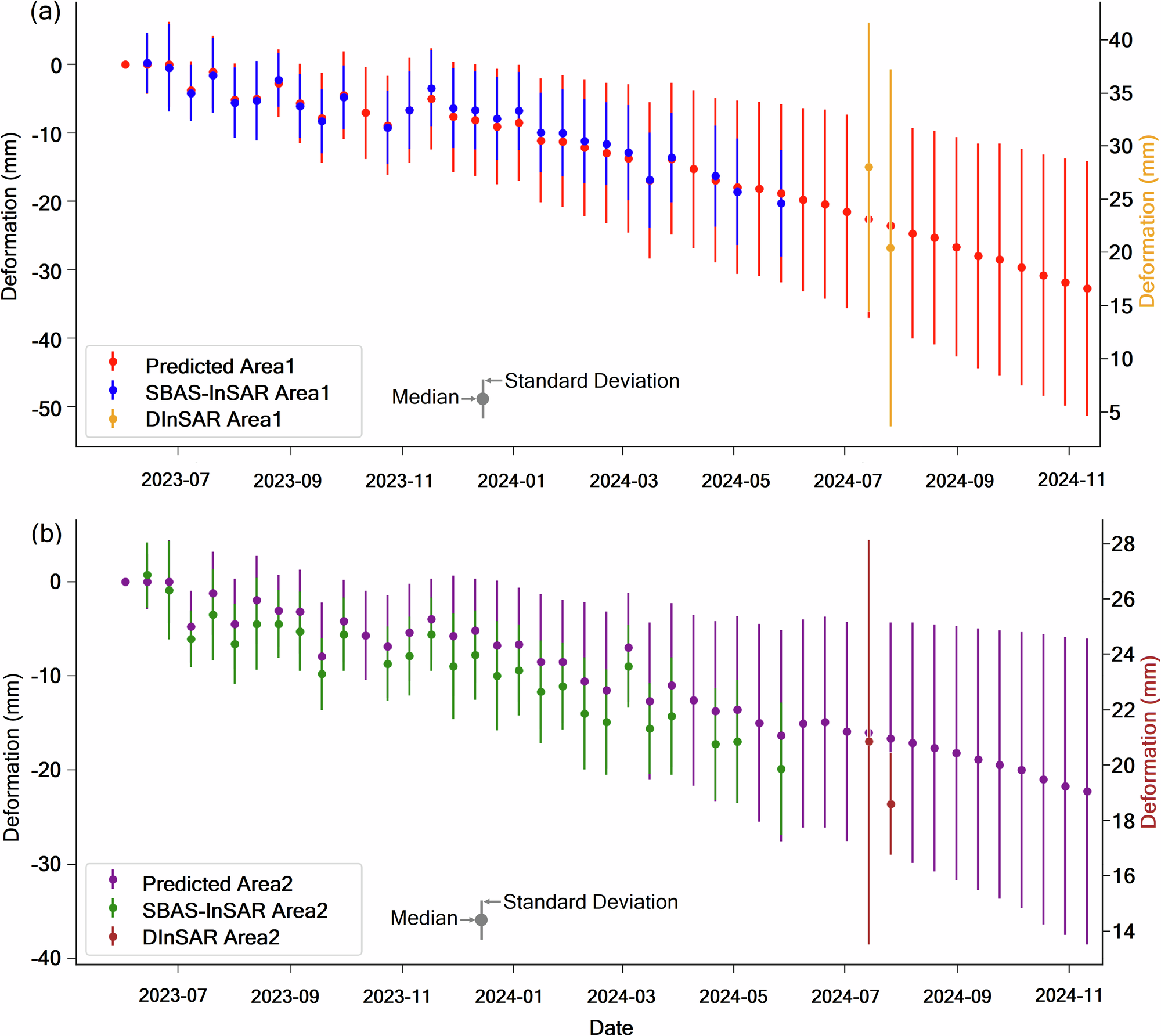

Fig. 6: Comparison of pre-flood SBAS-InSAR (June 14, 2023, to May 27, 2024), two post-flood DInSAR periods (May 27 to July 14, 2024, and May 27 to July 26, 2024), and predicted deformation based on SBAS-InSAR for two areas (June 2, 2023, to November 23, 2024).The alt text for this image may have been generated using AI.

Graphs (a) and (b) represent areas 1 and 2 respectively. The dot represents the median, and the error bar represents the standard deviation. The right Y-axis shows the D InSAR data. The data visualization is performed using SPSS 20.
