Fig. 1: MRAMs based on MTJs.

From: Antiferromagnetic tunnel junctions for spintronics

Fig. 1

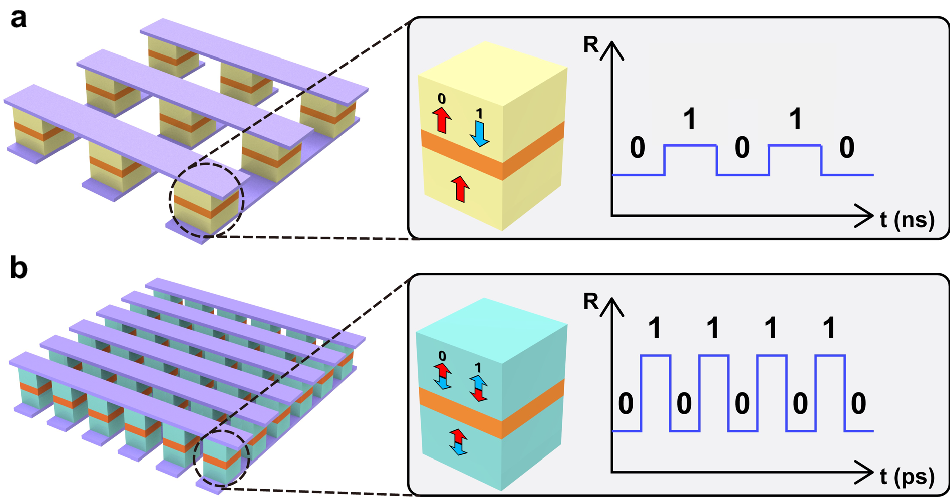

a Schematic of MRAM consisting of an array of conventional MTJs. b Schematic of AFM-RAM consisting of an array of AFMTJs. AFM-RAMs are expected to exhibit a stronger magnetoresistive response, a much faster operation speed, and higher density compared to the conventional MRAM, due to the advantages of AFMTJs.
