Fig. 4: Spin-spiral evolution by an external magnetic field as obtained from our continuous spin model.
From: Multiferroic kinks and spin-flop transition in Ni2InSbO6 from first principles

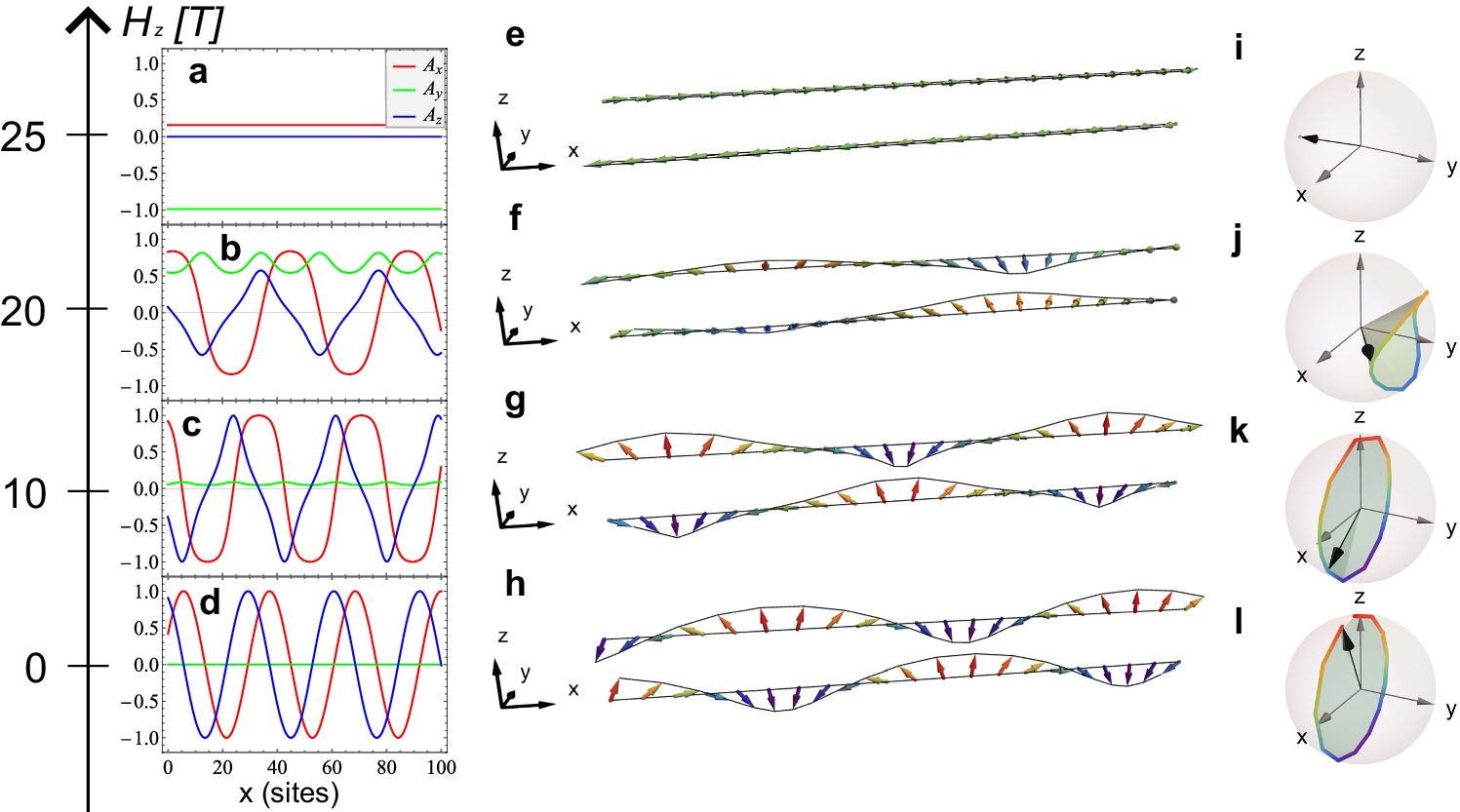

a–d Continuous spin, e–h real space continuous spin textures and (i–l) sphere area covered by each spin array as calculated using the continuous model Eq. (37) at several external magnetic field strengths Hz. a, e, i SF state; (b, f, j): conical spiral; (c, g, k): kink state; (d, h, l): flat spiral state.
