Fig. 3: Schematics of various GMR structures.

From: Spintronic devices for biomedical applications

Fig. 3: Schematics of various GMR structures.

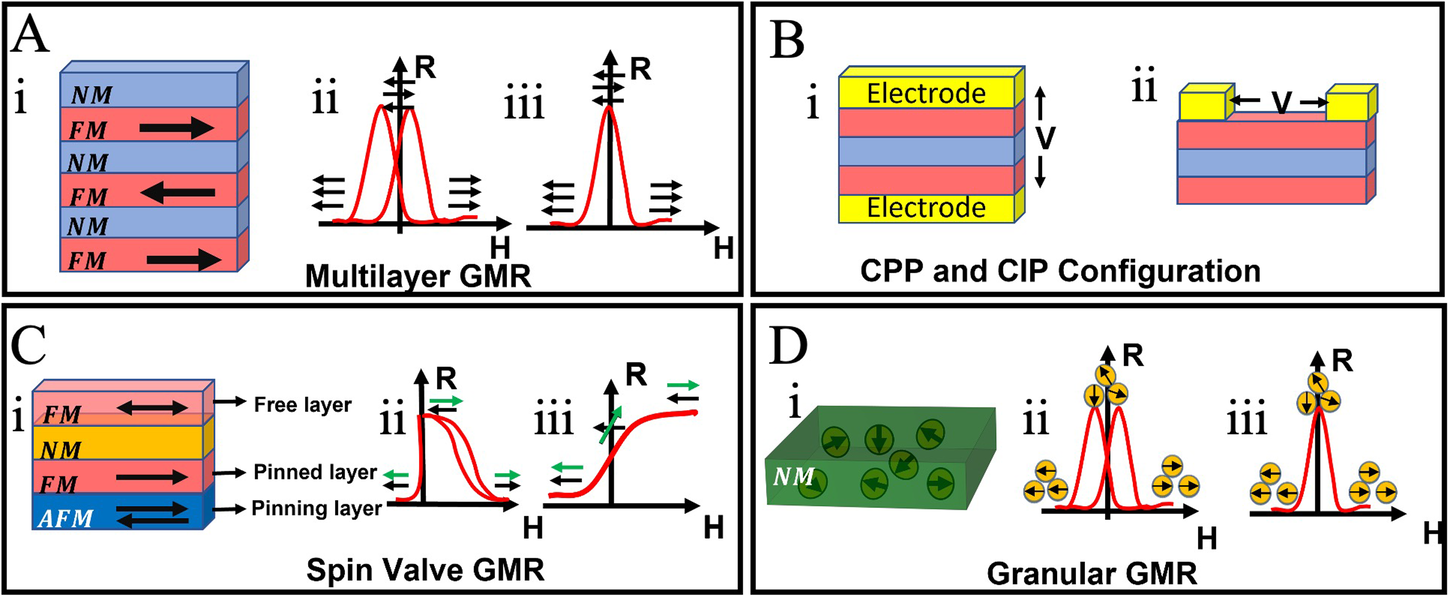

A GMR multilayer structure. B (i) CIP and (ii) CPP configuration with gold contact electrodes. C GMR spin valve structure. D Granular GMR structure. A: ii, iii), C: ii, iii, and D: ii, iii represent the R-H curves of the corresponding GMR structures.
