Fig. 4: Schematics RC.
From: Chaotic proliferation of relativistic domain walls for reservoir computing

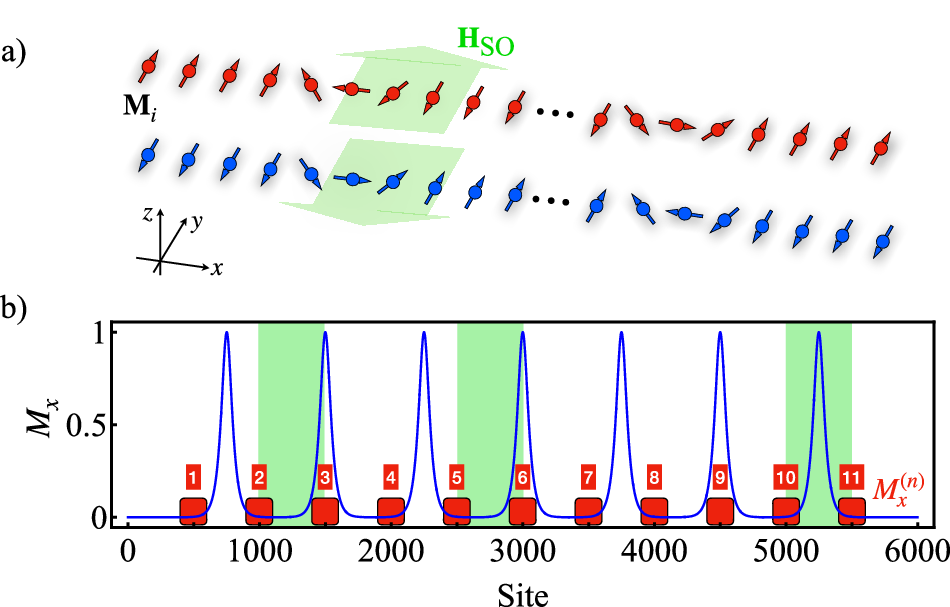

a Schematics of the bilayer AF-DW system for RC. Black arrows indicate the local magnetization vectors and the green thick arrows are the local input SO-fields. b Initial configuration of the x-component of the DW magnetizations in the upper layer (blue curve). For the lower layer, the sign of Mx is the opposite. Green shaded zones are input areas and the eleven detectors are labeled by red boxes.
