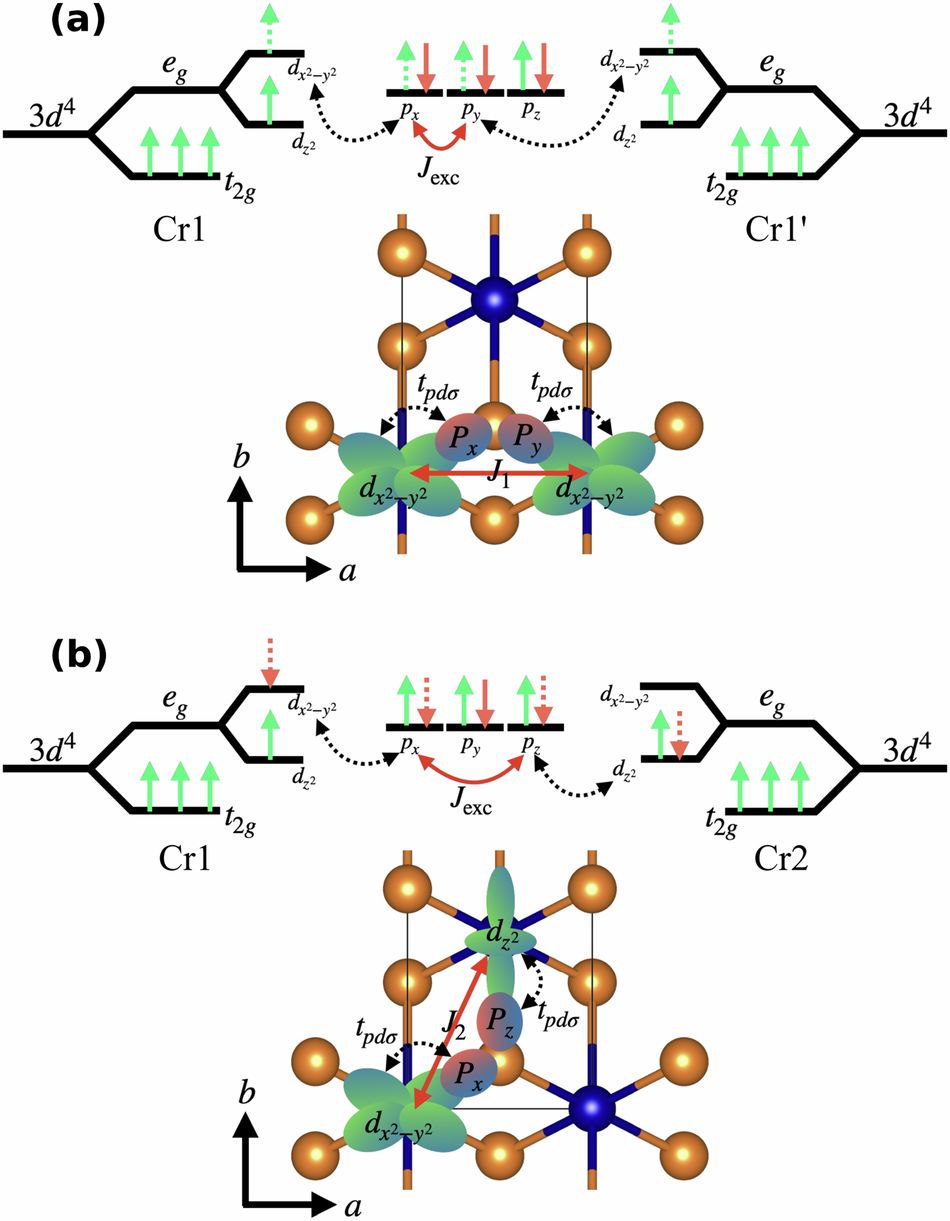

Fig. 8: Scheme of superexchange interaction.
From: Tunable magnetic coupling of monolayer CrI2 by strain engineering
a J1 and b J2 interactions. The dashed light green/coral arrows indicate virtual spin, the dashed black arrows indicate the hopping path, and the red arrows indicate exchange interaction.
