Fig. 4: Parallel writing of the 5D-4MTJ structure.
From: Parallel writing of magnetic tunnel junctions by electrical control of interlayer magnetic coupling

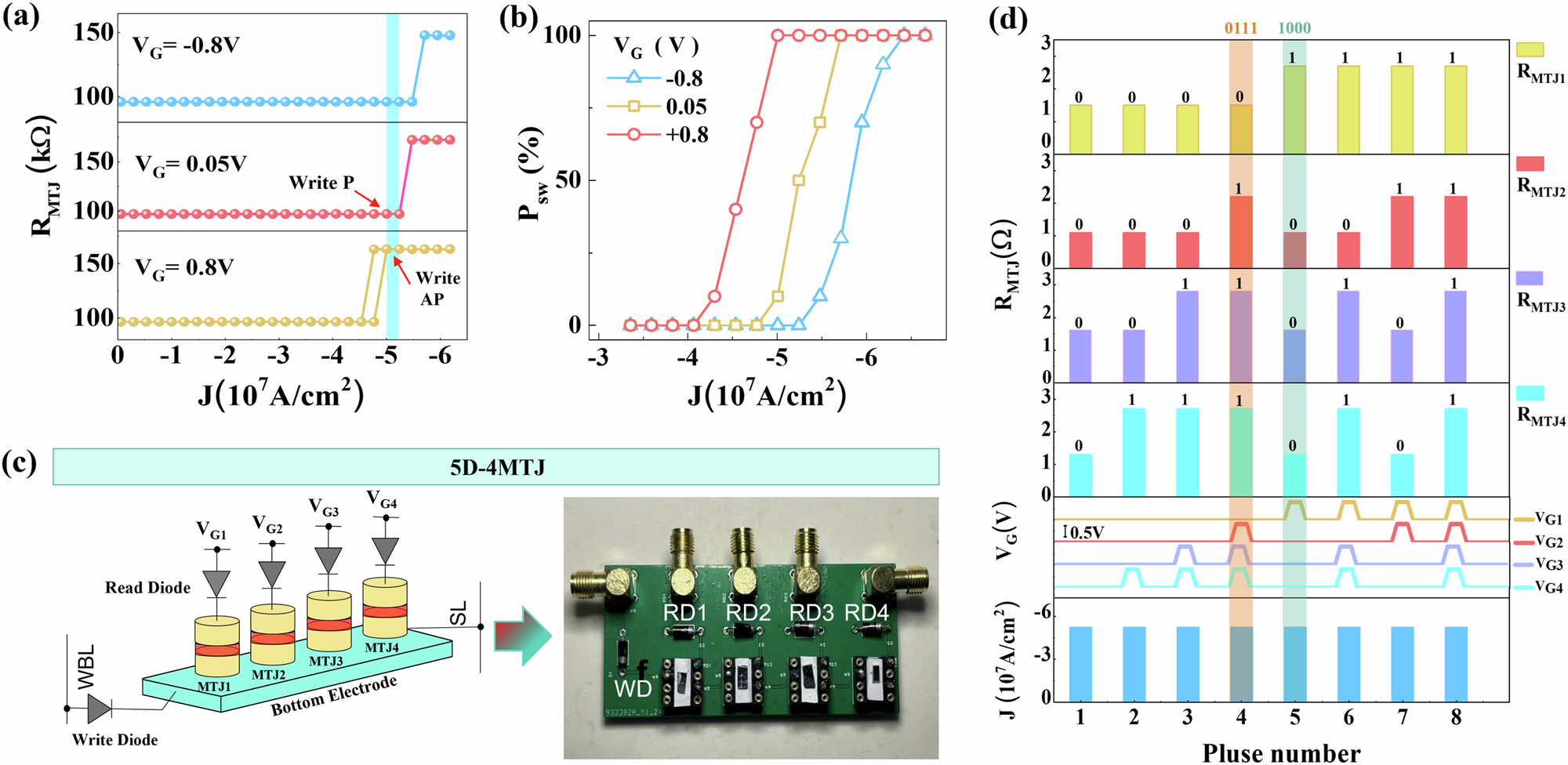

a RMTJ-J loops of the MTJ by different VG. b Psw of P to AP switching with different VG. c The schematics and PCB of 5 diodes and 4 MTJs structures (5D-4MTJ). d Experimental demonstration of parallel writing of the 5D-4MTJ structure.
