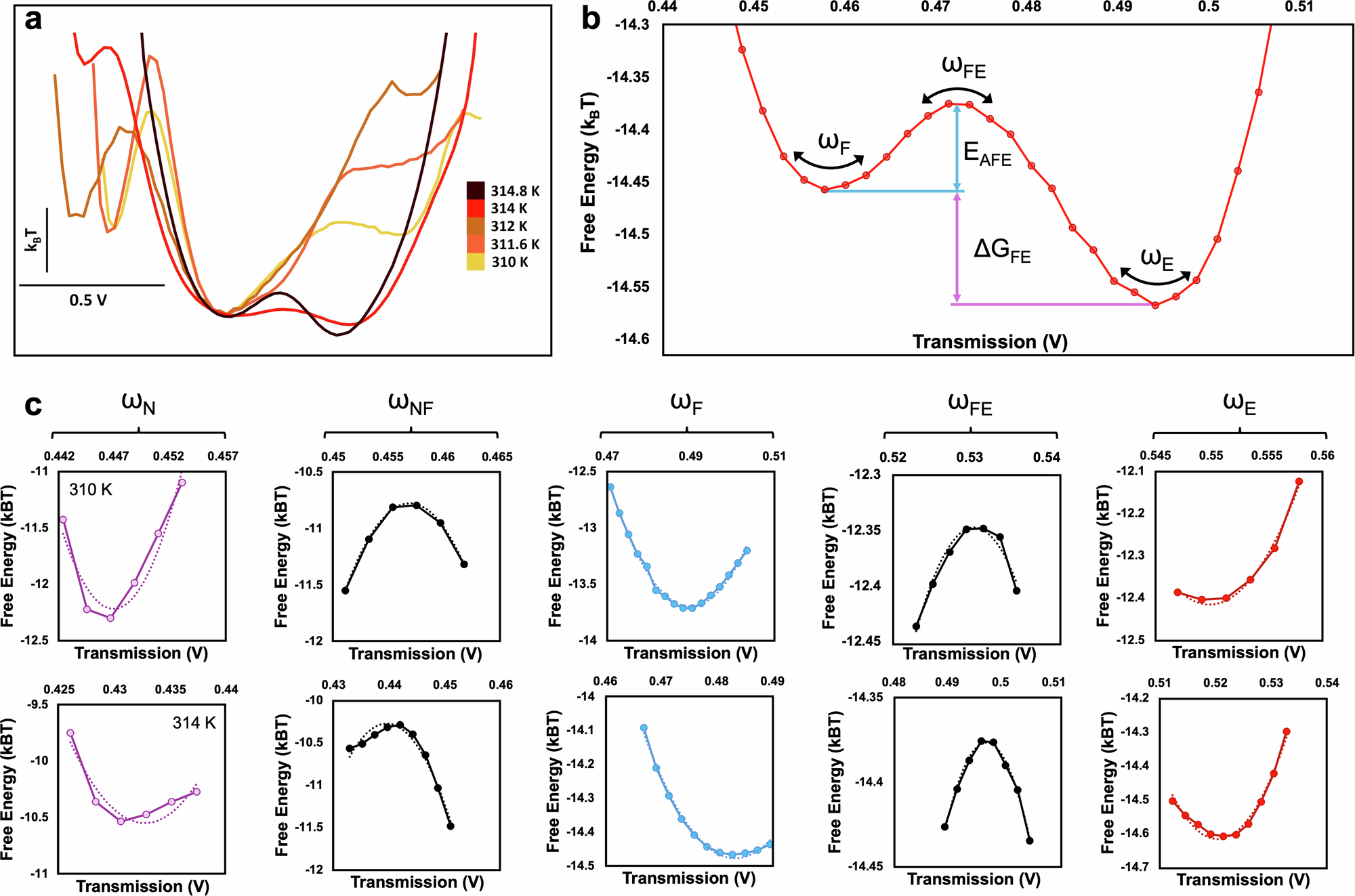

Fig. 3: Quantitative assessment of energy landscapes obtained from the trapping transmission traces.
From: Energy landscape of conformational changes for a single unmodified protein
a Energy landscapes for trapping events at increasing temperatures. b Example of quantitative values obtained from the energy landscape, where ω is the curvature, EAFE is the activation energy for the FE transition, and ΔGFE is the change in Gibb’s free energy of the FE transition. c Curvatures from the energy landscape fit to a second order polynomial at 310 K and 314 K.
