Fig. 2: Biomaterials used in organic solar cells. | npj Biosensing

Fig. 2: Biomaterials used in organic solar cells.

From: Photovoltaic bioelectronics merging biology with new generation semiconductors and light in biophotovoltaics photobiomodulation and biosensing

Fig. 2

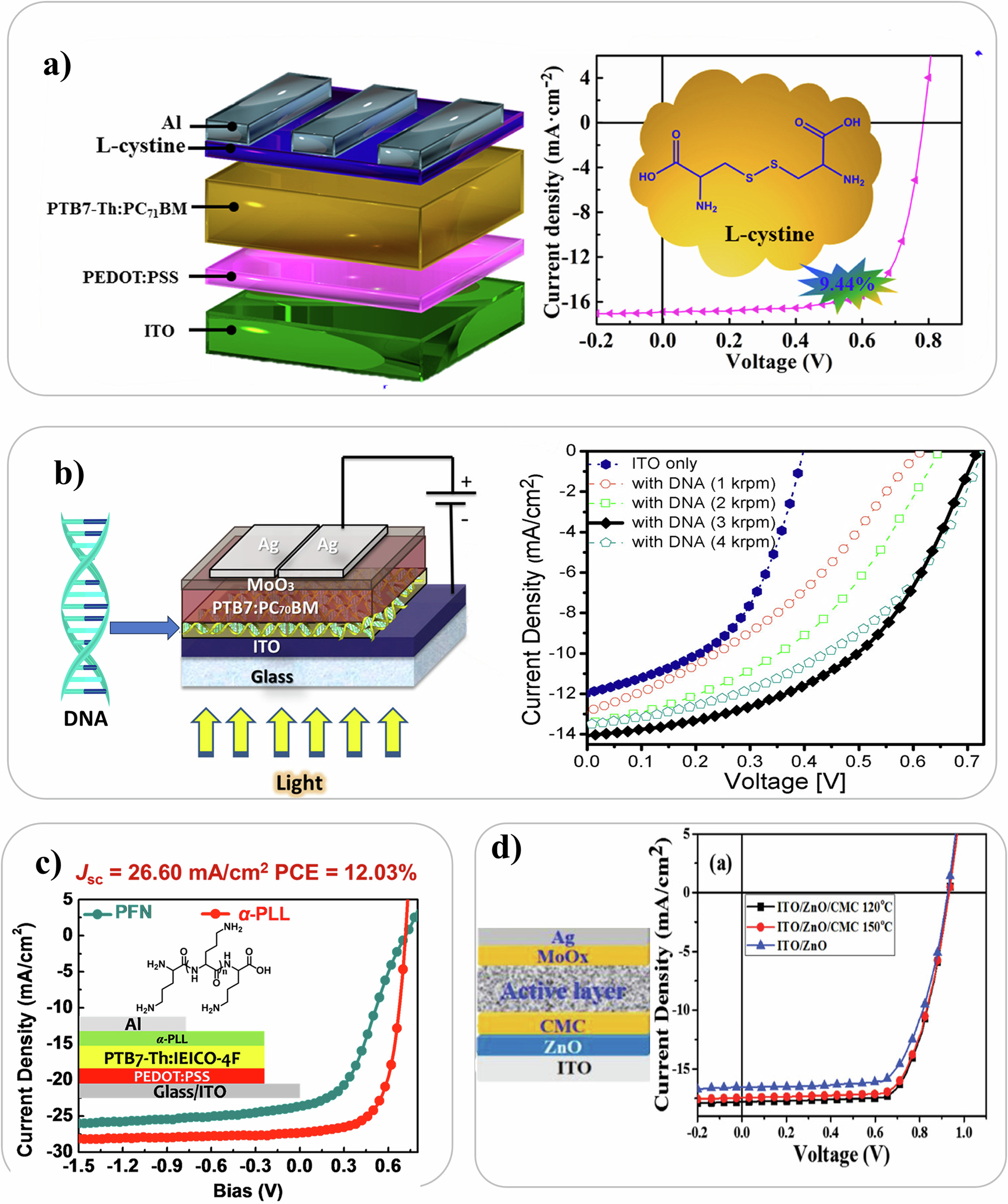

a Device geometry of OPV with L-cystine as ETL. The JV curve is displayed. Reproduced with permission from ref. 129. b The device structure of an organic solar cell incorporated with DNA nano layer and the device performance (JV curves) variation with respect to the spin speed of DNA layer deposition. Reproduced with permission from ref. 108. c JV curve comparison of an OPV device incorporated with Polyamino acid and Poly [(9,9-bis(3′-(N,N-dimethylamino)propyl)-2,7-fluorene)-alt-2,7-(9,9–dioctylfluorene)] (PFN) as electron extraction layer. Reproduced with permission from ref. 113. d Carboxymethyl-cellulose (CMC) based OPV device. The effect of different annealing temperature of ITO/ZnO/CMC on the JV curve compared with ITO/ZnO device. Reproduced under the terms of the Creative Commons Attribution CC BY 4.0116.
