Fig. 3: Slicing in AIMC.

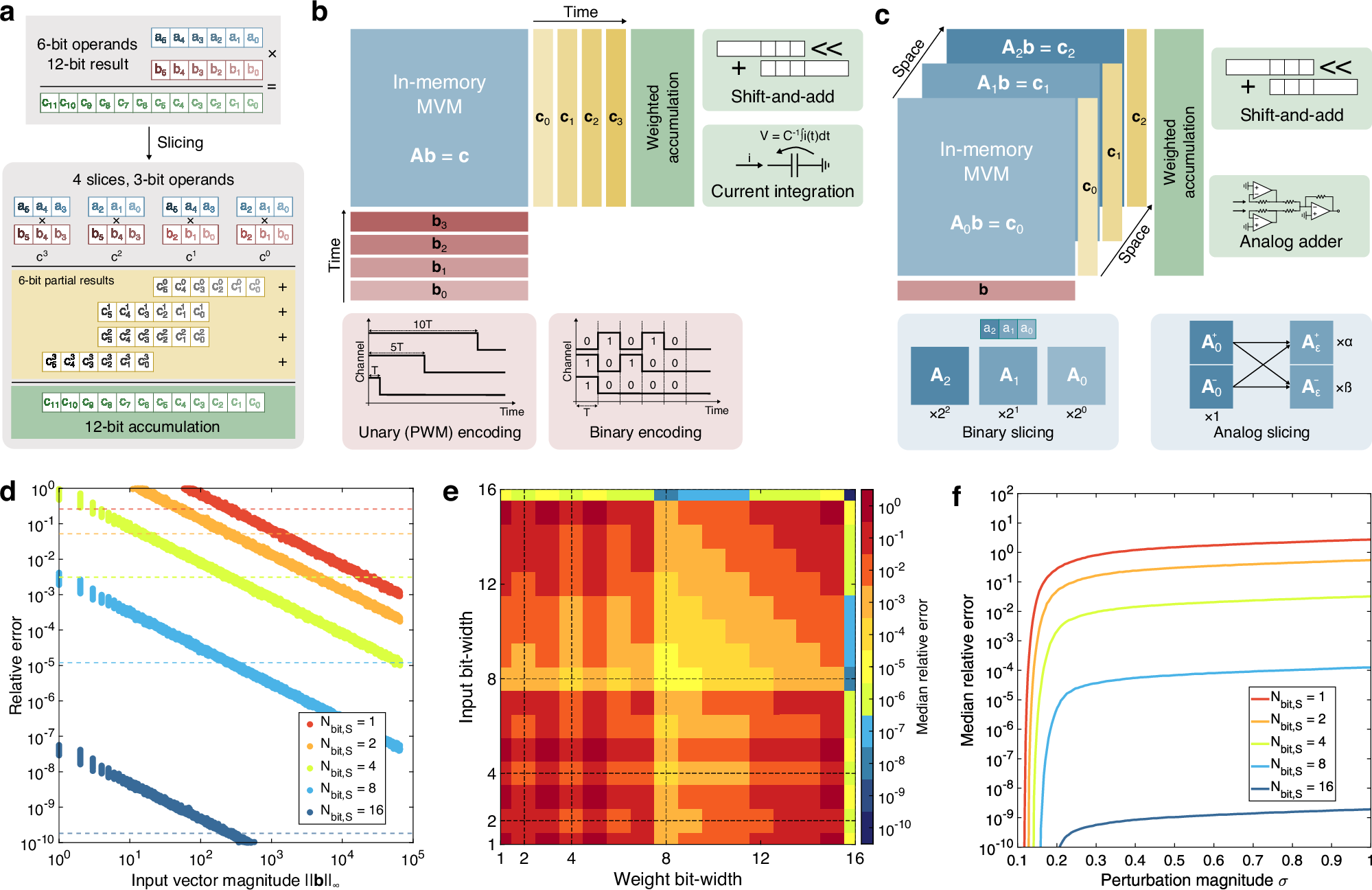

a Concept scheme of bit slicing technique for integer multiplication, where high-bit-width operands are decomposed in multiple low-bit-width slices. Partial results obtained by each sub-operation are shifted to reconstruct the equivalent significance of the processed slices and finally accumulated to reconstruct the target result. b Input vector slicing, where slices are typically processed sequentially by the same AIMC core. Different encoding schemes are used, including unary, also known as PWM, where values are represented by pulses of proportional duration and fixed amplitude, or binary encoding, where fixed-duration time slots are associated with different bit-significances. Each encoding must be matched to a conforming readout scheme for best performance, namely voltage-conversion followed by S&A for binary encoding and current integration-based schemes for PWM. c Owing to their stationarity, matrix slices are conversely encoded in space over different portions of the same memory array or different sub-arrays. Slice weights can be chosen as power-of-two multipliers, such as binary or quaternary encoding, or by dynamic computation at programming time in an analog fashion. In the first binary slicing approach, weight reconstruction is performed by digital-friendly S&A techniques. Conversely, the analog slicing approach is well-suited for reconstruction by analog adders with tunable gain. d–f Simulation results for a bit-sliced 128 × 128 MVM with 16-bit operands in a real IMC system for (d, e) σ = 0.1 LSB and (f) increasing values of σ. d Relative error as a function of the input vector magnitude for different values of input and weight slice bit-width. Dashed lines highlight the corresponding median relative error. e Median relative error as a function of the input and slice bit-width. f Median relative error as a function of σ.
