Fig. 2: Growth of pine seedlings inoculated with the deletion strain Δank, water, and M. extorquens 13061 at 30- and 60-days-post-inoculation (dpi). | npj Science of Plants

Fig. 2: Growth of pine seedlings inoculated with the deletion strain Δank, water, and M. extorquens 13061 at 30- and 60-days-post-inoculation (dpi).

From: An endosymbiosis in plant shoots based on an ankyrin repeat protein

Fig. 2: Growth of pine seedlings inoculated with the deletion strain Δank, water, and M. extorquens 13061 at 30- and 60-days-post-inoculation (dpi).

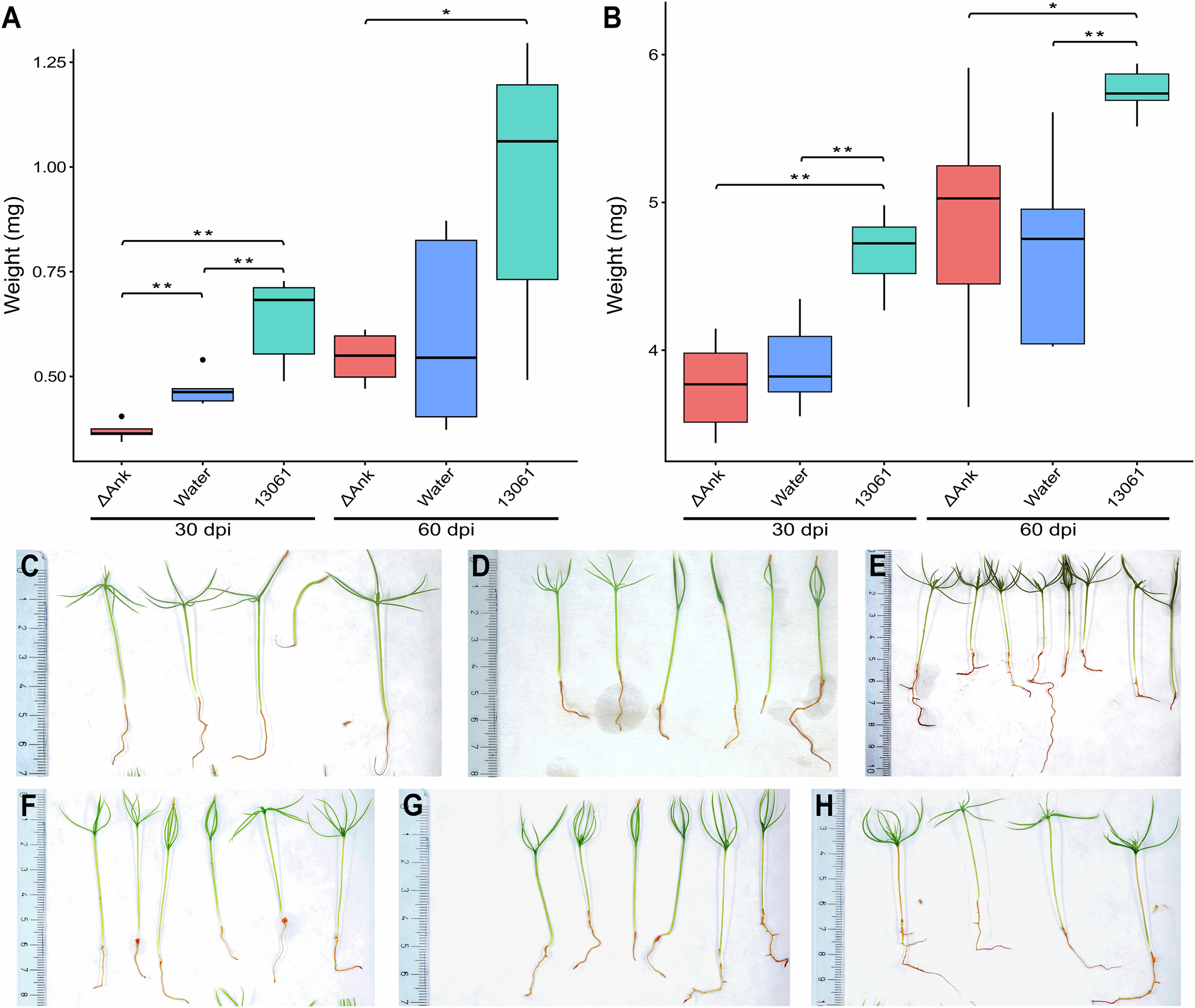

A Dry weight of pine roots; B Dry weight of pine shoots. Five biological replicates were measured, each containing 10 seedlings. The maximum and minimum values are denoted by whiskers and the median by the black line inside each box. *=p < 0.05; **=p < 0.01 (one-way ANOVA, Tukey’s test, t-test). Representatives of seedlings inoculated with (C) Δank, D water and E M. extorquens 13061 30 dpi, and F Δank, G water and H MM. extorquens 13061 60 dpi.
