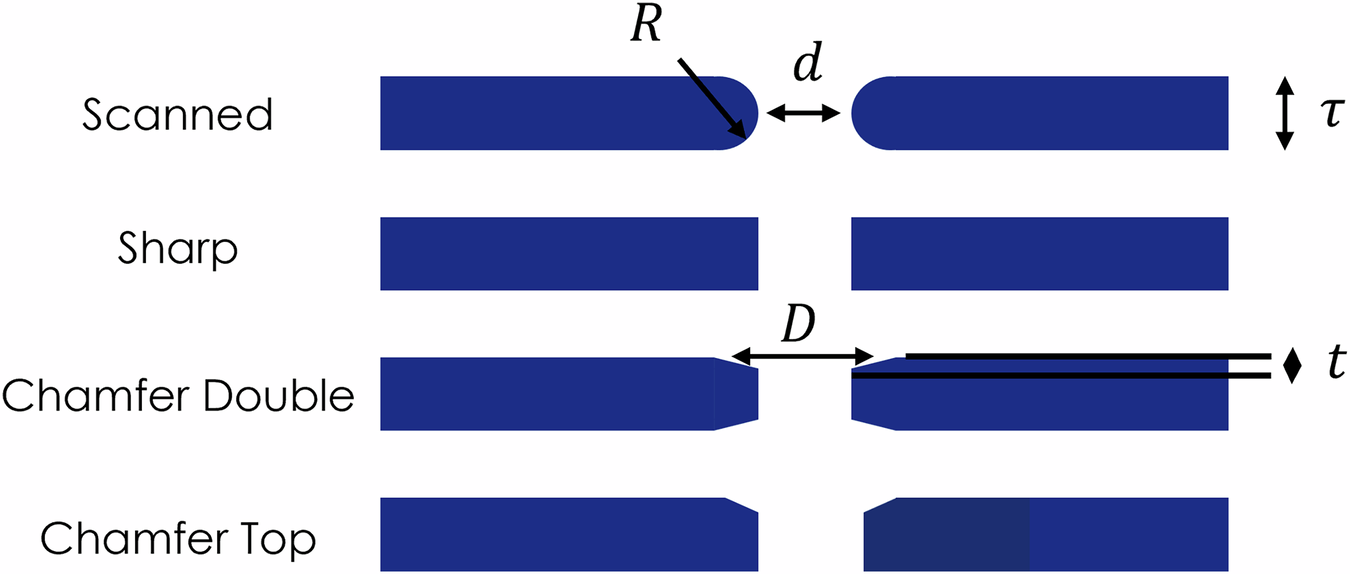

Fig. 10: Liner facesheet geometries tested with the normal impedance tube computational setup.
From: On the relevance of facesheet orifice geometry to acoustic liner impedance
Each geometry differs for the orifice finishes.
