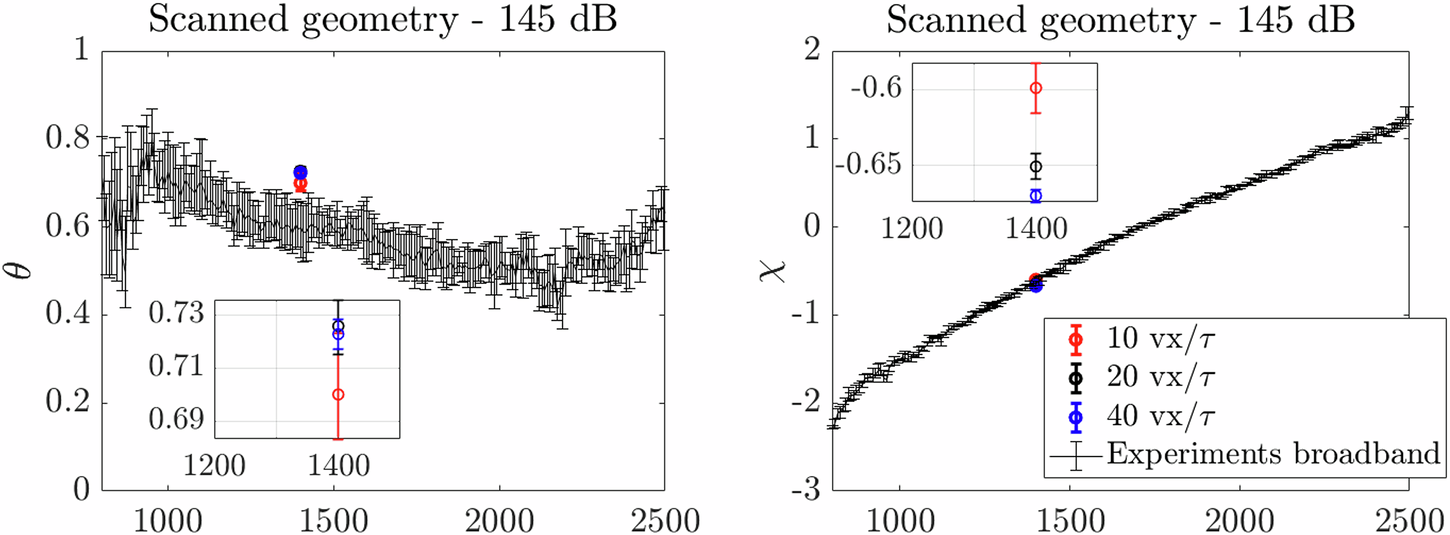

Fig. 13: Grid resolution study.
From: On the relevance of facesheet orifice geometry to acoustic liner impedance
On the left, the resistance, and on the right, the reactance component of impedance for three different grid resolutions. Symbols represent the numerical results, while the continuous line with the uncertainty bar represents the experimental one.
