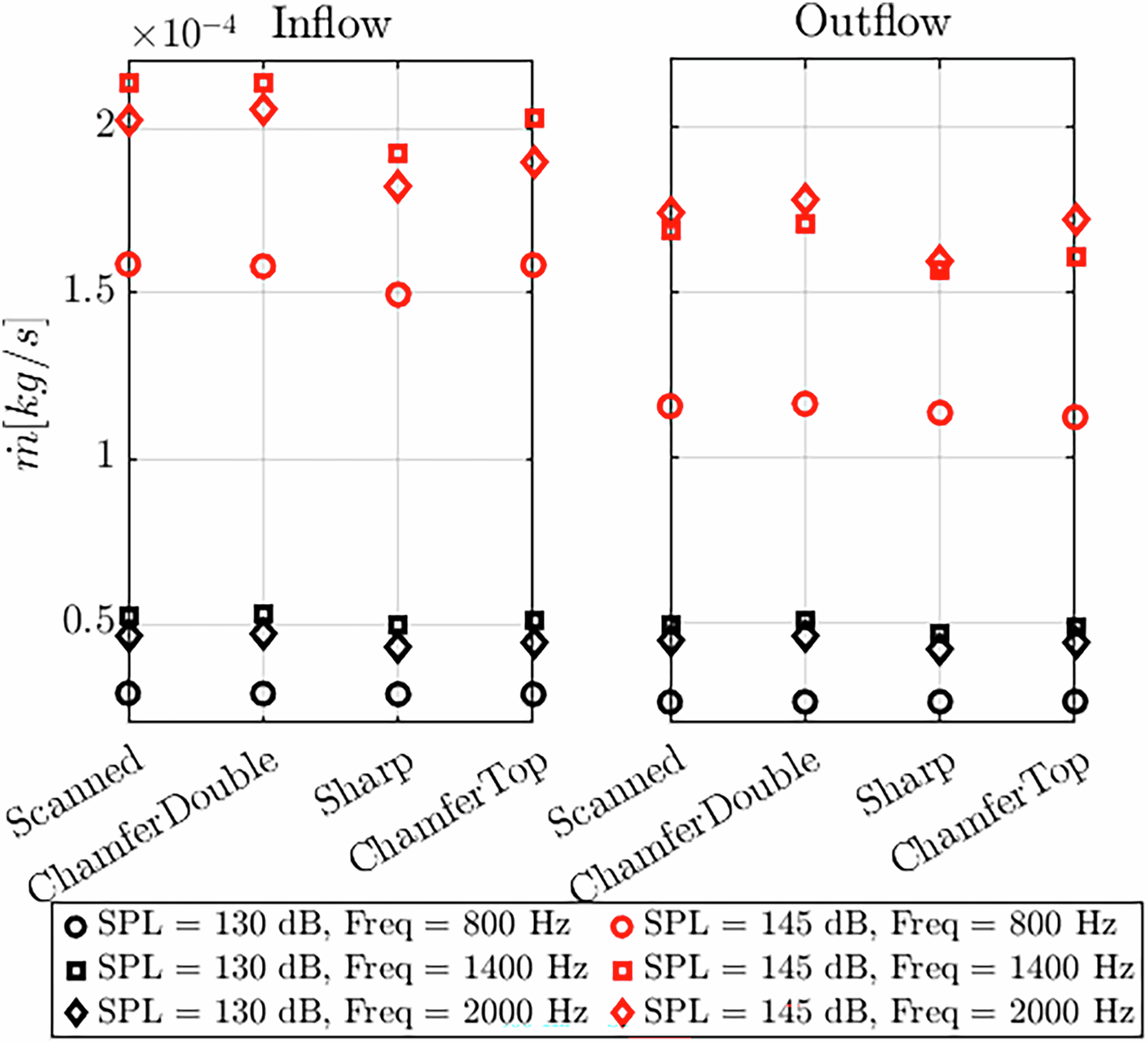

Fig. 4: Comparison between geometries of the mass flow.
From: On the relevance of facesheet orifice geometry to acoustic liner impedance
Simulations were performed with acoustic plane waves with different frequencies and amplitudes equal to 130 dB (black) and 145 dB (red).
