Fig. 2: Nanofibers on top of the PEO coating characterization.

From: Stepwise antibacterial strategy for orthopedic implants using bacteriophages on electrospun cefiderocol/PCl/Gt nanofibers over PEO-coated Mg3ZnCa

Fig. 2: Nanofibers on top of the PEO coating characterization.

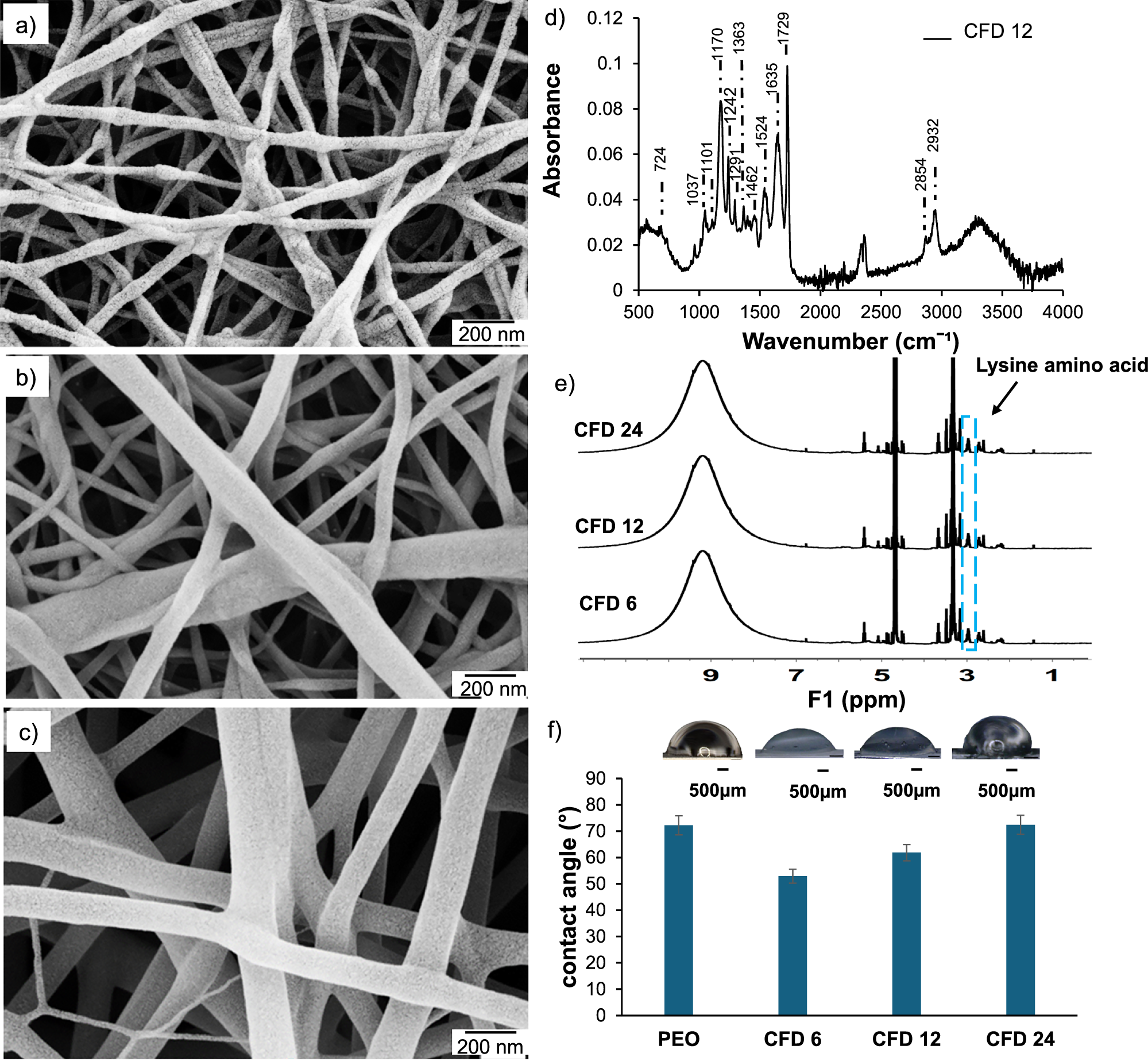

a–c SEM images showing the morphology (a) of CFD 6, (b) CFD 12, and (c) CFD 24 electrospun nanofibers; (d) FTIR spectrum of CFD 12 electrospun nanofibers; (e) ¹H-NMR spectra of CFD 6, CFD 12, and CFD 24 electrospun nanofibers in a methanol-d₄/acetic acid-d₄ (1:1) mixture; (f) contact angle test images and quantification of it of ZX31PEO, CFD 6, CFD 12, and CFD 24 samples. (CFD 6; nanofibers including cefiderocol 6 wt.%.)
