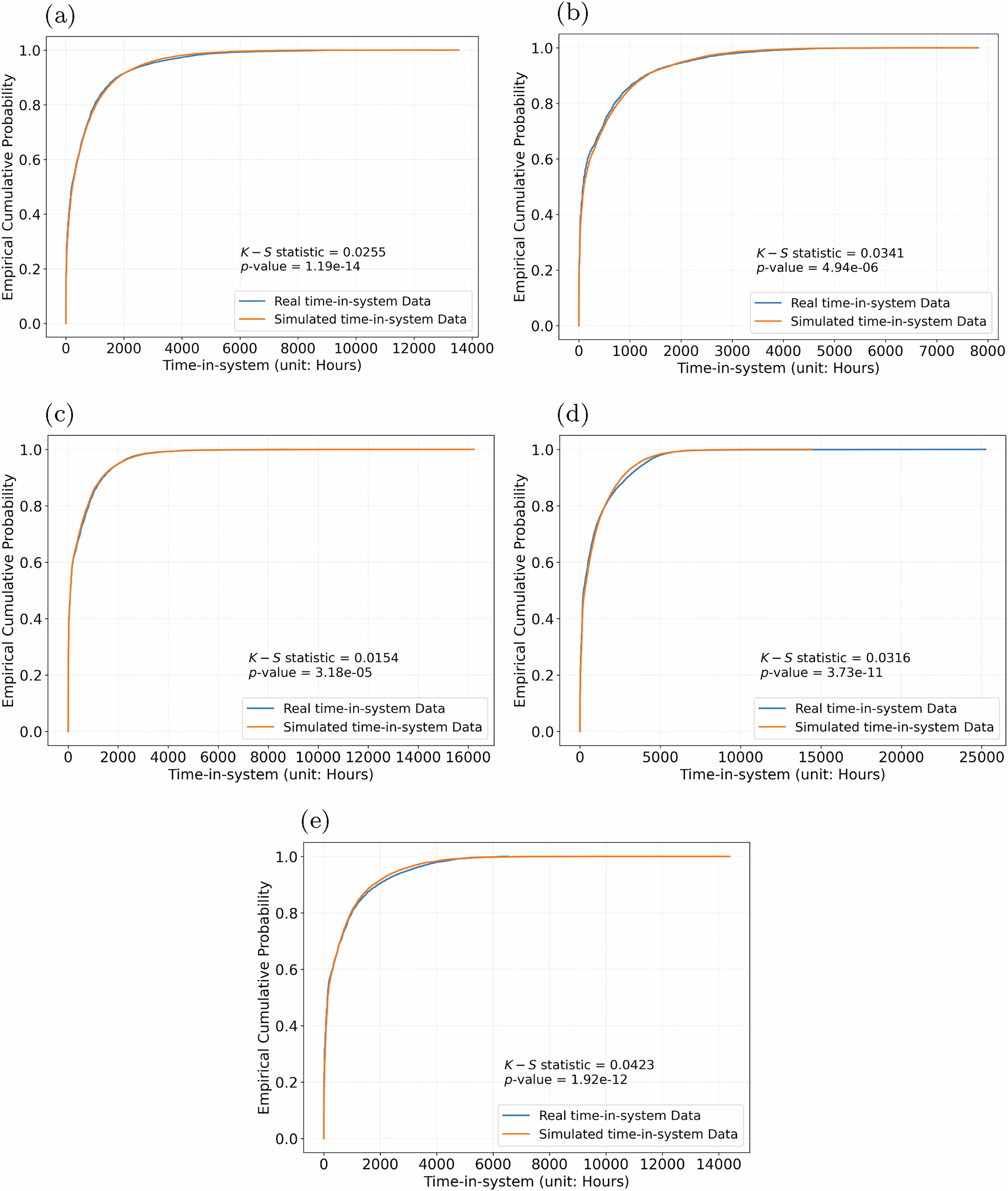

Fig. 2: Empirical cumulative distribution functions (ECDF) of observed and simulated time-in-system datasets across facilities.
From: A simulation framework for evaluating electronic order workflows in integrated health records
a Facility A. b Facility B. c Facility C. d Facility D. e Facility E. The ECDF plots compare the distributional alignment between simulated and real time-in-system data. Each curve represents the cumulative probability of order duration for one dataset. The degree of vertical separation between the curves reflects the maximum difference in cumulative distributions, which is quantified by the K-S test statistic.
