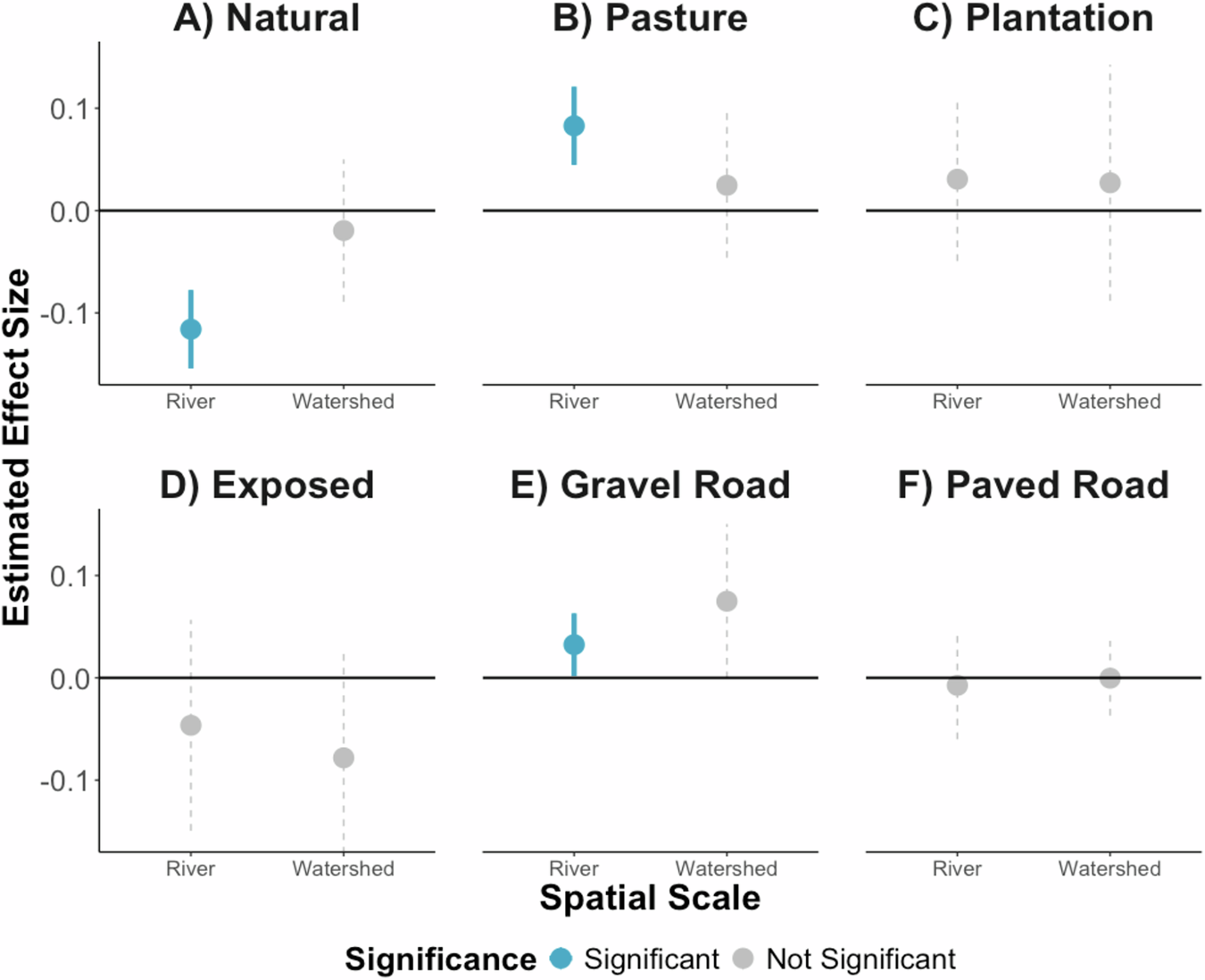

Fig. 2: Estimated effects of riparian and watershed land use on coastal turbidity.

From: Riparian vegetation reduces coastal turbidity

Fig. 2: Estimated effects of riparian and watershed land use on coastal turbidity.

Estimates from inverse probability of treatment weighting (IPW) models with random effects of the impact of the proportion of A natural vegetation, B pasture, C plantation, D exposed land, and the presence of E gravel road, and F paved road in riparian zones and watersheds on annual turbidity 100 m offshore. Bars indicate 95% confidence intervals (CI). Blue indicates a p-value of the estimate less than 0.05, and gray indicates a p-value greater than 0.05. Estimates are in Supplementary Table S1.
