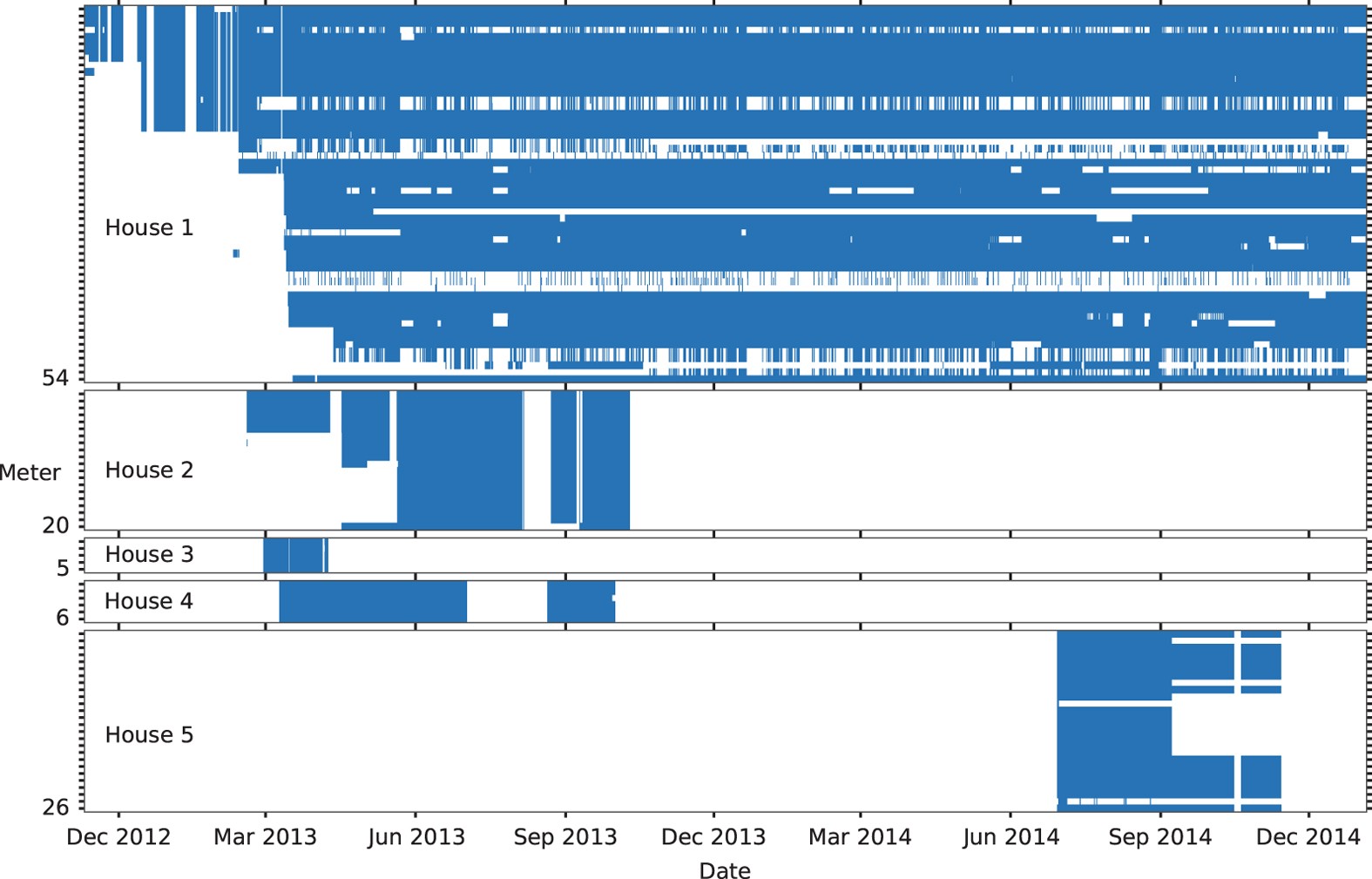

Figure 3: Time periods when meters were recording.

From: The UK-DALE dataset, domestic appliance-level electricity demand and whole-house demand from five UK homes

Figure 3

The five houses in the dataset are represented by the five panels in this plot. The height of each panel is proportional to the number of meters installed in each house. Each thin row (marked by each y-axis tick mark) represents a meter. Blue areas indicate time periods when a meter was recording. White gaps indicate gaps in the dataset.
